Buschhoff GmbH & Co. products

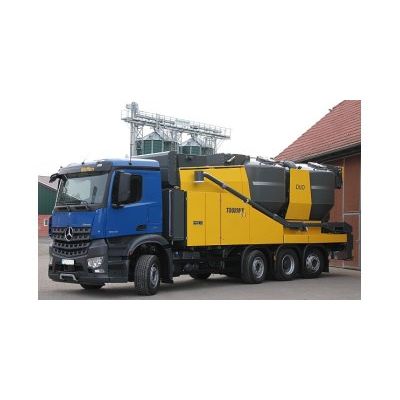

What´s the plan today - your customer demands a a 12 t large mixture, to different feed mixtures, or a 500 kg special mixture? The new TOURMIX 03 DUO will do it all. Because it is equipped with two mixing containers, two weighers, two filter units, and a large hybrid  blower with a variable drive. two completely different mixtures can be simultaneously produced and discharged.

Due to longstanding experience with its two different plant systems, Buschhoff presents a multitalent for the mobile milling and mixing business.

The TOURMIX 02-VE with the 4.5 ton weighing mixer is the basic model of the new series. It works according to the proven Buschhoff system. As soon as the coarse meal has the structure defined by the screen, it is pneumatically transferred to the combination valve and then into the mixer. Rolled feed is also transferred pneumatically to the valve which guarantees a smooth transfer of the rolled materials. The results are an even feed structure and best performance.. Immediately after processing, the feed structure can be checked by taking samples. Further feed components which need not be processed - for example coarse soy meal - can be conveyed directly into the mixer.

Superior by Detail - Hammer Feed Mills without blower type BHOS. Hammer mills without blower type BHOS, when compared with a blower mill, deliver a significantly better milling performance than a blower hammer mill at the same power rating. The reason is that a BHOS mill dedicates the whole motor power to milling, without having to divert part of the power for the conveyance of grain/bruised grain.

An real innovation for on-site milling and mixing (feed milling) is the hammer mill BHOS DUO. This mill combines the excellent throughput performance of mills without blower and the flexibility which otherwise is provided only by two separate mills. The new develop­ment, though, is engineered to provide 2 different screens and bi-directional rotation. Thereby it is able to produce 2 completely different feed structures without the need for a manual screen change, extremely interesting when milling wheat and barley. A plant with the DUO mill offers more flexibility in feed production, easier operation, and a significant economy of time. More economic advantages are provided by the fine-tuning of high-quality feed production and by the better feed intake by the animals. It is available with 11, 15 and 22 kW.

Customer requirements and individual needs are Buschhoff’s focus. Therefore the paddle wheels of this mill series can be adapted to the specific demands of the individual customer. The different models feature powerful three-phase motors from 7.5 to 18.5 kW. Welded design provides extreme robustness to the mill casing, and a solid rotor contributes to the mills’ durability.

Electronic load control enables the most energy-efficient use of the mill. During operations the load control monitors continually the current consumption of the mill drive. According to the level of current consumption, the control operates a special rotary valve which is mounted at the intake device.

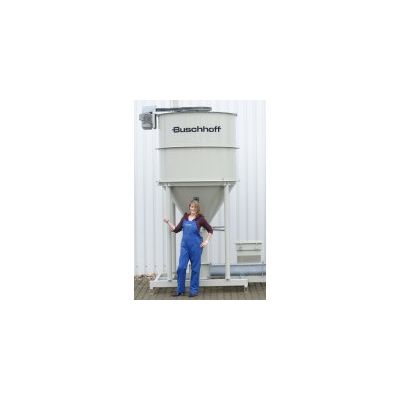

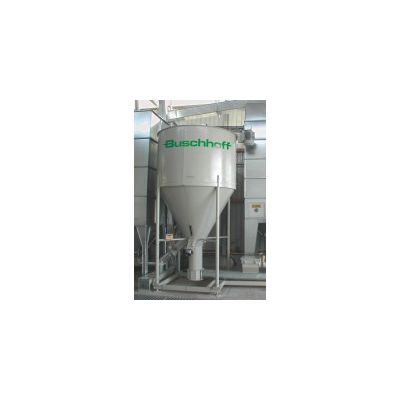

The Buschhoff feed mixers are available in different designs and layouts. Their capacity is between 750 and 3.000 kg. They use the well-proven forced mixing mode, resulting in a mixing accuracy of 1:100.000. The large, slow-moving mixing auger makes for an efficient and fast mixing. Up to 5 % oil can be added without any problem. Another advantage: The mixers of the WR layout can be fitted with intake augers up to a length of 4 m. Therefore a dust-free insertion of feed components is ensured.

Our augers are manufactured in-house and are suited for the conveyance of grain and bruised grain.
