Colombardo products

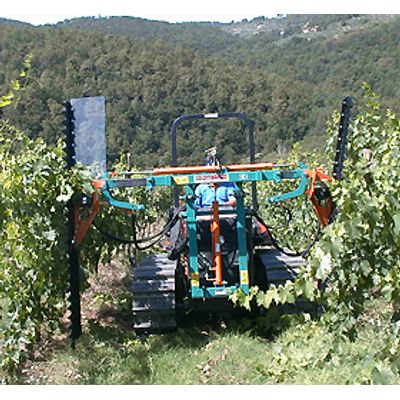

The trimmer of the “Potel” series belongs to the type with cutting bars featuring double alternated movement of the blades called “double-blade”, reducing the vibrations to the minimum. This system performs a neat cut making the wound on the shoot of the vine less evident and allowing more rapid healing. Differently from the cutting system with “free blade” (knife) producing a wider and more irregular wound, it requires more demanding daily maintenance, with the cleaning and sharpening of the blades many times a day, the periodical checks of the rotation parts (bearings, belts) as well as higher risk exposure due to the ejection of the residual vegetation during the work.

The POTEL BIL TRIMMER features a `double-blade` mechanism with two mobile blades (series COLO04 tooth) on the vertical cutting bar. The Double-blade movement with double connecting rod enables the sliding of the two blades without any vibration and ensuring a neat cut of vegetation. Besides, this type of movement implies require less maintenance work both during daily work and for the preparation for garaging while not used.

The trimmer uses the scissor cutting system (blade/counter-blade). The modular construction of the machine allows a customized configuration depending on the pruning method of the vineyards. Every cutting segment or module consists of five fixed blades and two mobile blades, a hydraulic motor with the driving parts hosted by a safety carter. the steel carter has been designed and tested to guarantee utmost safety to the operator protecting him/her against any projection of vegetation during the trimming. Every cutting segment or module works on 0.70 m height.

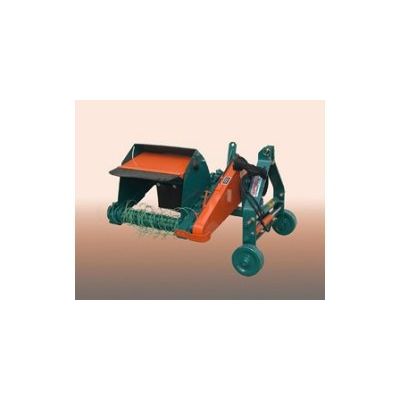

Shoot-remover with whips mainly used in viticulture, yet useful also in other types of cultivation. Rotofil has the function of eliminating the shoots growing on the trunks in general. the operation of shoot-removal allows also the elimination of the wed along the row, between the plants, without damaging the fruit bearing shoots. The machine is predisposed for the 3-point universal connection of the rear hoist. The axis of the shoot-removing roller is designed to operate oblique to the row to increase the action field on the weedy soil and at the same time make the sensitive operation of shoot-removing softer.

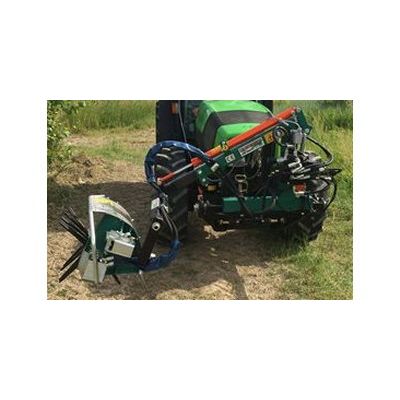

Hydraulic Shoot Removing unit for vineyards: the ideal tool for the soft removal of the shoots from the trunk of the vines and the weed growing under the rows. This unit was designed to be mounted on the suitable frame, both on the front of the tractor and on the side in single (or double) version with a special flange or on the universal rear hoister of any tractor with rear connection. In the picture, it is presented with a specific frame for the front assembly on tractor without hoisters.

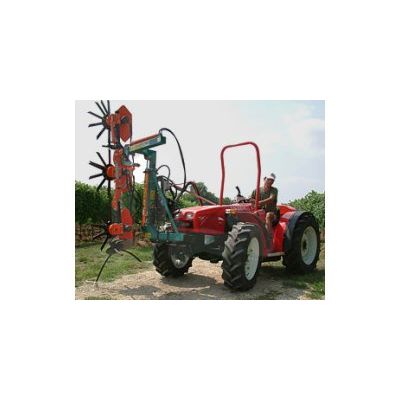

The bilateral hydraulic Bar, Flying Killer model, is equipped with articulated frame for a rapid and comfortable assembly on the front part of the tractor. The various controls and electro-hydraulic movements (electrical distributor with 4 independent functions) listed below are easily controlled by the operator driving the tractor:

Double Wire Lifter for the trellising of the summer vegetation of the vineyards with espalier training (Guyot – low spurred cordon). On this model the lengths of the shoot conveying belt can be varied and fitted to the optimal period of intervention. The special shoot collecting belts convey the shoots upwards without damaging them; the speed of the belts can be regulated according to the advancement speed rate.

Mounted fixed or on the front hoister, the Solaris model defoliator with counter-rotating rollers is equipped with two opposite rollers for the sucking and detachment of the leaves. The equipment does not need any mechanical cutting bar; a simple radial sucking element produces the necessary quantity of air that for the temporary attachment of the leaves on the roller with holes and then their detachment from the shoots without any shock to the plant and hurts to the fruits

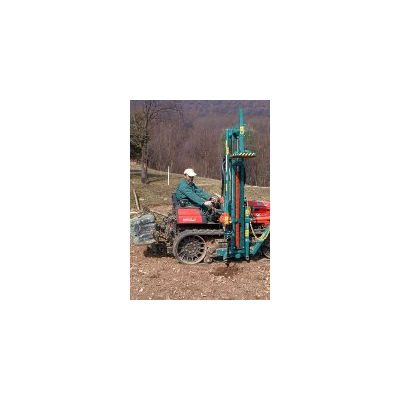

The lateral pole driver is used for the trellising of vineyards, orchards, etc. located on slopes or on flat ground. The Rambo L machine has been designed to work in any situation. The machine is mounted on the side of any tractor with tracks or not. Its position at the centre-side allows its use on untilled soil without any danger for the tractor to lift.
