Pieralisi Group - Olive Oil Division products

The MOLINOVA TG plant replacing the wellknown PANORAMA TG, combines the tested efficiency of the previous models with Pieralisi’s high technological innovation, able to solve all the problems of the farmer during both continuous and batch processing.

Fattoria is the continuous processing plant specially designed by Pieralisi Group to meet the needs of those who wish to process small quantities of olives, but is also suitable for batch processing. This plant is planned for the growers who process limited quantities of top quality olives, whose dream to make their own oil can now become a reality. Olive growers will be able to immediately process the olives they pick daily, thus obtaining an oil of superior quality: a home-made product with all the hygiene, perfection and faultlessness that only centrifugal extraction can offer.

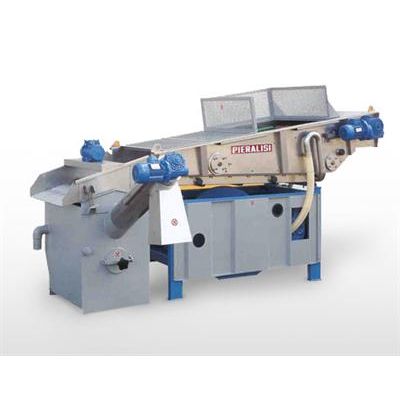

The Jumbo washing machine is the perfect solution for large production volumes with high levels of dirt and stones, plus other heavy foreign matter. The continuous discharge of solid sediments is ensured by the special mobile, bladed ring located at the bottom of the tank.
Like all Pieralisi washing machines, the washing system with blown air allows the olives to be perfect cleaned, without coming into contact with metal parts which could cause them to break, resulting in a loss in the oil yield extracted from the olives.

The special washing system of the Pieralisi hydropneumatic olive washing machine guarantees total removal of soil attached to the olives as well as leaves and any other foreign body.

Water consumption is limited because the water, during its circulation, deposits all the sediments removed; thus ensuring constantly clean water in the washing tank.
Sloped belt for improved drying of the olives.

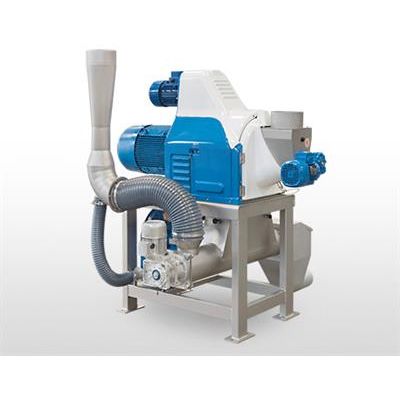

The Pieralisi crusher, rotating grid (2800 rpm) and counter-rotating grid, is the father of all crushers, and even today the only crusher able to guarantee the best yield and quality of oil. The grids with flared holes are easily interchangeable and are available in different hole diameters ranging from 5mm to 8mm with 0.5 mm variations depending on the size of the olives and, where necessary, the different taste of the olive oil requested.
6-blade impellers equipped with special notched plates and the innovative bar grid that can reduce energy consumption by 30% are available on request.

For special conditions, e.g. a request for milder oil in order to meet the demands of some customers, Pieralisi recommends a double grid which makes it possible to produce a more mild and delicate olive oil. These crushers are suitable for processing olive cultivars with a high concentration of polyphenols.
The crusher reduces their extraction time whilst ensuring an excellent yield even if it is lower than that of a single grid crusher and a lower amount of hours worked.
The grids with flared holes are easily interchangeable.

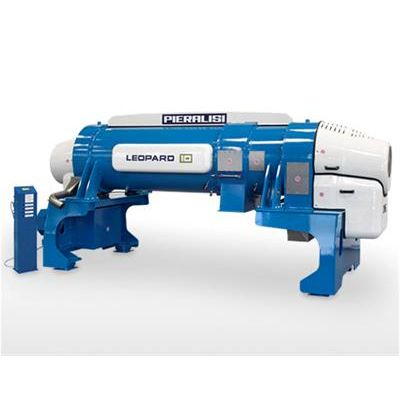

The DMF technology (Multi Phases Decanter) has given birth to LEOPARD, the technological solution of the third era for olive oil extraction.

LEOPARD is the only two-phase decanter producing a dehydrated husk similar to the one coming from a three-phase decanter; it also separates the pulp (“pâté”) from the husk, obtaining an ideal ingredient for composting or animal feeding.
It is the only decanter that can combine modern extraction technology without the addition of water with batch processing, thanks to the bowl discharging device, automatically handled by the control panel with touch screen buttons.

Eolo, the new olive oil centrifugal separator is built using tried and tested components and materials to ensure flawless operations and a long lifespan.

Thanks to the absence of transmission gears:

1. lubrication is not needed
2. less wer-and-tear
3. greater energy efficiency

Compared to the other separators of the Pieralisi range, it presents less overall dimensions and a quieter operation.

The Cucciolo olive oil centrifugal separator is built using tried and tested components and materials to ensure flawless operations and a long lifespan.

The high technological knowhow acquired by Pieralisi in the field of centrifuges, has brought to the development and production of this vertical separator Bravo.
