Sistema AZUD, S.A. products

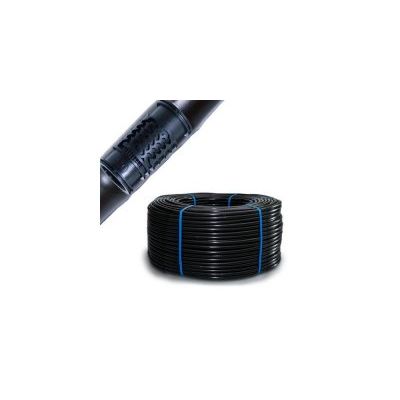

Ø 16 Models: 1.6L - 2.2L - 4L Nominal Thickness: 0.9 mm - 1 mm. Ø 20 Models: 2.2L - 3.4L Nominal Thickness: 1 mm - 1.2 mm. After 25 years in the market, the results are the most important factor, and the ones obtained by AZUDRIP have been excellent for this period of time. Therefore, nowadays is one of the best selling turbulent flow driplines in the world, leader in more than 20 countries. The key for its success is based on long-lasting and highly homogeneous irrigation and its high resistance to clogging.

Ø 16 Models: 1.4L - 1.6L - 2.2L - 4L Nominal thickness: 0.9 mm - 1 mm. Ø 20 Models: 2.3L - 4L Nominal thickness: 1.2 mm. Dripline with pressure-compensating dripper integrated in the manufacturing process. Thanks to the cylindrical pressure-compensating dripper incorporated, it provides the plant with a constant flow independently from working pressure. Its great application uniformity optimizes crop results, each plant obtains the same quantity of water and nutrients.

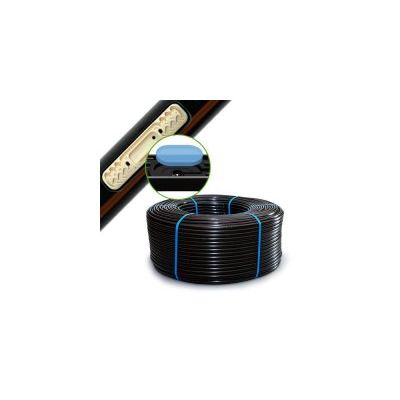

AZUD PREMIER PC, Flat Pressure Compensating dripper bond-on in multi-seasonal pipes. Ø 16 Models: 1.0L - 1.6L - 2 -  2.3L - 3.0L - 3.5L Nominal thickness: 0.9 mm - 1 mm - 1.1 mm Ø 20 Models: 1.0L - 1.6L - 2 - 2.3L - 3.0L - 3.5L Nominal thickness: 0.9 mm - 1 mm - 1.2 mmA AZUD PREMIER PC AS, Flat Pressure Compensating, antisuction, dripper bond-on in multi-seasonal pipes. Ø 16 Models: 1.0L - 1.6L - 2 - 2.3L - 3.0L - 3.5L Nominal Thickness: 0.9 mm - 1 mm - 1.1 mm Ø 20 Models: 1.0L - 1.6L - 2 -  2.3L - 3.0L - 3.5L Nominal thickness: 0.9 mm - 1 mm - 1.2 mm.

Ø 16 and Ø 20 Models: 1L - 1.6L - 2.2L - 4L Nominal Thickness: 0.75 mm - 0.9 mm - 1 mm. AZUD PRO is the success of the result of 25 years of experience in the micro irrigation sector. The use of the lastest technologies and the innovative design criteria to the development of the new emitters have made possible the application in AZUD PRO of the “DS Technology” by AZUD, together with the obtaining of the maximum hydrodynamic efficiency and emitter’s reliability under all the possible working conditions.

Models 160: 1LNominal Thickness: 0.15 mm (6 mil) - 0.20 mm (8 mil) - 0.25 mm (10 mil). Models 220: 1L Nominal Thickness: 0.15 mm (6 mil) - 0.20 mm (8 mil) - 0.25 mm (10 mil). AZUD SPRINT is a thin-wall dripline with integrated dripper, which offers the maximum safety for seasonal crops. It is long-lasting, more resistant to clogging, more precise and uniform during the irrigation process. AZUD SPRINT is the best choice.

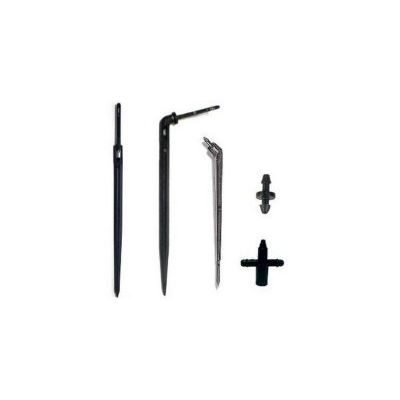

1.- Straight labyrinth pick. 2.- 70º labyrinth pick. 3.- Microtube pick (hydroponics). 4.- Microtube offtake connector. 5.- Extendable multi-outlet 2E.

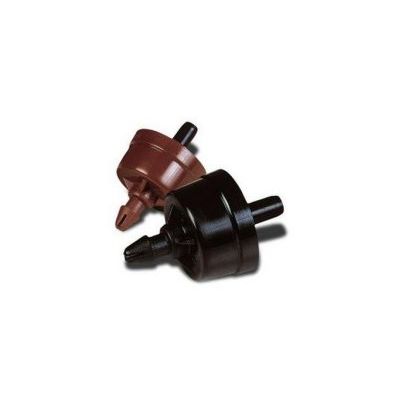

MBTECH meets all the qualities of a pressure-compensating and no-drain dripper just in one punched dripper, providing each plant with a constant flow independently from the pressure. It is an ideal dripper for crops that requires a maximum precision for fertigation.

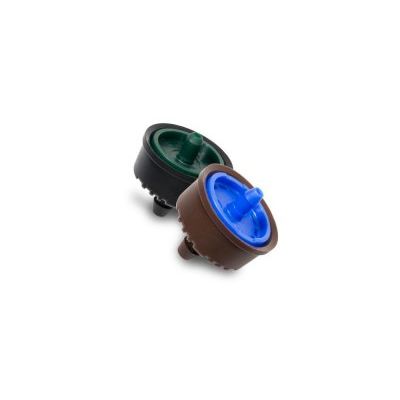

NAVIA is the Pressure-Compensating and no-drain range able to adapt so much to installations of irregular topography as to crops of high performance in greenhouses. With the last advances in technology, CYSNE joins in the same dripper a wide range of pressure-compensating with the best variation coefficient, obtaining high uniformity of water application and fertilizers on each plant and making each installation profitable.

AZUD SPIRAL CLEAN filter is based on low maintenance and optimum safety in filtration, and on its wide filtering surface. Its ergonomic design allows an easy and quick cleansing, without disassembling the filter or stopping the installation.

Automatic Screen Filters with hydraulic operation, suitable for all applications and available in several micron sizes. Built with the guarantee of AZUD quality.
