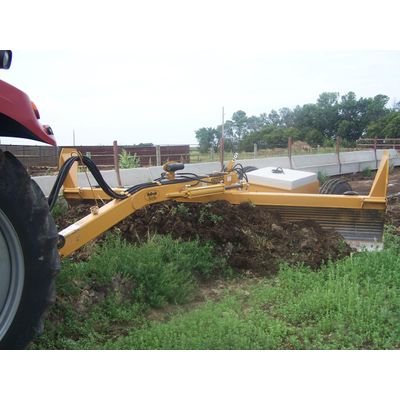

Johnson - Model 1600RS -16 Inch Rear Steer HyGrade Grader

SHARE

All hydraulic cylinders, hoses and tips are included. Requires 4 hydraulic remotes. Dual hydraulic cylinders for blade angle are standard on each model. All hydraulic cylinders have nitro steel shafts to withstand element exposure.

Most popular related searches
tractor hydraulic
box scraper
tractor seat
motor grader
tractor
  • Hydraulic Rear Steer that allows the operator to move the blade 4 to 5 feet more to the left or the right side of the tractor hydraulically from the tractor seat.
  • Blade angle hydraulic relief valve standard on each model.
  • 16′ blade length
  • Blade angles 45 degrees left and right.
  • Blade tilts 15 degrees left and right for slope cuts.
  • Concrete weight & box scraper ends are standard with each model.
  • Deep Quad Rib tires have excellent side bite traction.
  • Replaceable high carbon steel cutting edge.
  • High moldboards allow for maximum dirt transfer.
  • Excellent blade to ground clearance.
  • Storable hitch jack.
  • Safety chain is included.
  • Snow/Dirt Shoes are optional. Learn more here.
  • Comes standard with a blade tilt indicator.
  • Blade: Blade Angle 45°, Blade Height 30", Blade Length 16`, Blade Tilt 15°, Blade to Ground Clearance 26"
  • Tires: Quad Rib 11.00 x 16", 8 ply
  • Hubs and Spindles: 6000# 8 bolt
  • Total Weight: 6620#
  • Tongue Weight: 1620#
  • Cutting Width at 45° Angle: 11` 3"
  • Overall Length: 21` 5"
  • HP Range: 120 – 400
  • Weight Box: 46 1/2" x 34" x 12"
