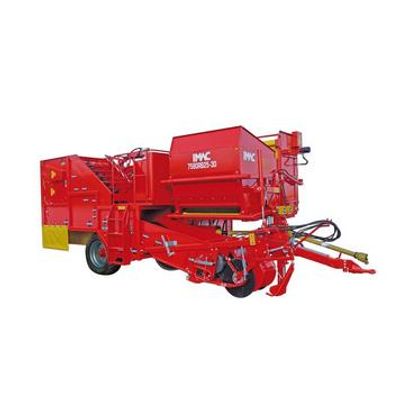

Imac - Model 7580 RB 25 30 - Automatic Onion Loader

Automatic Onion Loader with a moving-bottom hopper (4,5/5,5 T). Sieving channel (80 cm) elevator-defoliator channel (90 cm). 2 hedgehogs.

Most popular related searches

Hydraulic foot
Drawbar for lower hitch with adjustable height
Hydraulic equipment for harvesting in 2 phases with rubber paddlesand rotor shaft or with synthetic roller
Fast change pick up
Rubber shakers with manually adjustable intensity on sieving web
Cardan shaft with clutch
Sieving web pitch 40 mm with straight bars Ø 11 mm
Elevator web pitch 35 mm with straight bars Ø 11 mm and rubber porters
Wide mesh haulm web around the elevator web – Vulcanized bars with rubber fingers
5 rows of haulm intake combs mounted on springs with manually adjustable angle
Haulm tearing roller placed under defoliator web
Hydraulically driven transversal hedgehog and manually adjustable angle
Hydraulic rotary comb with adjustable speed and retaining roller with independent hydraulic system
Sorting table with hydraulic adjustable speed linked to tractor system
Chute for discharging on both sides (1 on the right and 1 on the left)
Large sorting table up to 5 persons reachable on both sides
Acustic signal
4 rows of sorting rollers
Hydraulically driven drawbar
Hydraulically driven axle steering
Electro-hydraulic controls
Hydraulic system powered:
A) Pistons, sorting table and the hopper engine linked to the tractor system
B) Rotary comb and transversal hedgehog with an independent hydraulic system
Loose web to fill up the hopper with adjustable position and with electric control from the selection table and the tractor
Tyres 400/55 – 22,5

2 speed gearbox
2 additional cleaning rolles at the exit of the cleaning hedgehog
Separation kit for stones with hydraulically driven rotary brush and retaining roller (instead of rotary fingers)
Stone hopper (with hydraulic opening)
Additional haulm intake combs (1 row)
Separation kit for small onions with hopper and an hydraulically driven discharging web (hydraulic extension)
Fall breaker at the end of the hopper
Road lights (without road traffic approval)
Automatic centring of the sieving channel
Automatic centring of the wheels
Kit for carrots (including hydraulically driven grass cutting discs 1 left and 1 right)
Digging depth control through a hydraulically level wheel
Digging depth control through a mechanical level wheel
Automatic hopper filling up
Electric adjustment of the web shaker on first sieving web
Tyre 500/45 – 22,5 (1 pcs) (instead of the standard one)
Monitor with 2 cameras
Parasol roof
Supplementary haulm tearing roller (1 pcs)
Stone hopper with hydraulically driven unloading web JP
Hopper for small onions with high unloading JP
Additional control box
Braking system (oil or compressed air)
Road traffic approval (valid only for Italy)
