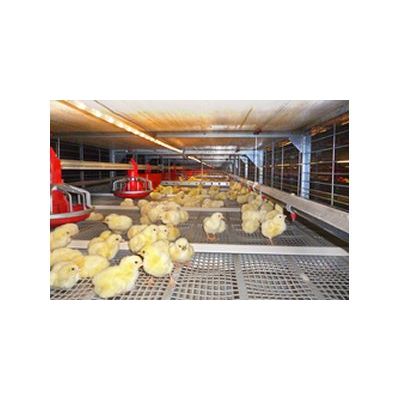

STRATA - Model CT-2569/201501 - Broiler Colony System
Corrosion-proof plastic flooring flexes beneath the birds for greater comfort. Openings permit easy manure pass-through to the manure belt below. Chore-Time`s MODEL C2® PLUS Shallow Feeder is well-known for easy management and excellent feed conversion. Flood feature helps with starting chicks, and pans can be winched up as birds grow.
Most popular related searches
broiler colony system
broiler colony
manure removal system
broiler
broiler system
colony housing
bird scale
manure removal
manure belt
poultry feeder
Features
- Chore-Time`s STEADI-FLOW® Drinking System provides a reliable flow of water to birds. System can be raised within the compartment using a winching system.
- Manure removal system eliminates the expense associated with floor litter.
- Harvest system`s proven mechanical unloader transports birds down the row quickly and safely.
- An LED lighting system with adjustable light intensity is included with the STRATA™ System.
- Unique application of Environmental Control Systems from Chore-Time regulates temperature and air speed throughout the colony house.
- Use Chore-Time`s CHORE-TRONICS® Controls for total system control and data collection.
Specifications
- Compartment capacity is 50 kg/m2 (10.2 lbs/ft2).
- Maximum row length is 37 sections.
Available Options
- Unloading platforms/lifts for crates or containers
- Motorized inspection trolleys
- Sliding doors in partitions between compartments
- E-Z START® Chick Feeder
- Electronic bird scales
- PDS™ Control for water line pressure
- Water control panels, meters and medicators
- Dimmers for LED lighting system
- Installation tool kits
Hybrid Unloading System
- Linear unloading system quickly and efficiently transports broilers from colony compartments to crate loading area for manual transfer to crates.
- Birds remain indoors during unloading process in conditioned air, protected from the outside environment.
- Efficiently transports broilers to the end of the row for transfer into crates without added labor for bird catching in the house.
- Less manual handling preserves better meat quality.
- At the end of the row, broilers are accumulated in a buffer area for manual transfer into the crates.
- Empty crates can be taken from the upper supply track, while the filled crates are pushed onto the lower removal track.
- The hybrid system can be extended with mobile roller conveyors to supply and remove the crates more efficiently.
- The hybrid crate loading system can easily be converted into a fully automated container system.
- The hybrid system can be used for multiple houses.
