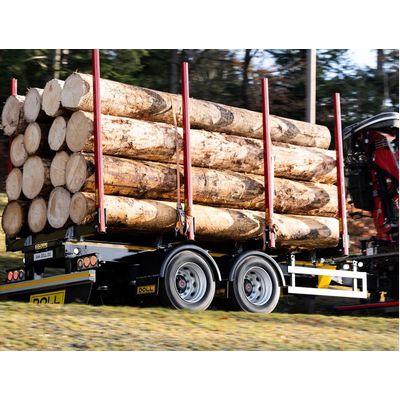

Doll - Model A2T -Central Axle Timber Trailer
Optimum handling and comfortable manoeuvring – whether you`re negotiating a hairpin bend or reversing. The DOLL® A2T central axle trailer with robust Y-drawtube delivers all this and more. Its clever design and weight-optimised steel construction promise absolute stability. The short "Shorty version" tandem trailer boasts an extremely low loading height of 1,000 mm and a deadweight of just 2,600 kg, so there`s always plenty of space for your load!
- Cables protected in the drawtube
- Load securing points integrated into the frame
- Bulb holders mounted on side of frame
- Bolsters and stakes available in a range of premium materials
Weighing in at just 2,700 kg, the A2T-LZ53 is incredibly light. It boasts 5,250 mm of loading length for transporting one or two timber stacks with ease.
With an overall length of 6,000 mm, the A2T-LZ35 Shorty version really is short. Ideal for transporting one stack of timber, it makes manoeuvring in tight spots a breeze. The optional bolted bolster provides an extremely low loading height of just 1,000 mm.
The strong Y-drawtube gives the driver complete freedom to manoeuvre, with a steering lock angle of up to 90°.
Optimal illumination thanks to full LED lighting with dynamic indicators and flashing side marker lights. A solution that not only looks great, but boosts road safety too.
Countersunk fillister head screws and a flush surface finish make it easy to sweep away any leaves or bark left behind
Dimensions
- Deadweight: from approx. 2,700 kg
- Loading height (loaded): approx. 1,230 mm (with 265/70 R 22.5 tyres)
- Overall length: 7,250 mm
- Loading length: 5,300 mm
- Wheelbase: 1,310 mm
- Transport timber lengths between 2 and 6 metres
- Payload-oriented design and weight-optimised steel construction
- Very low deadweight
- Twin tyres for maximum stability, whether parked or driving
