Wil-RichModel 2500 Series - Chisel Plows

SHARE

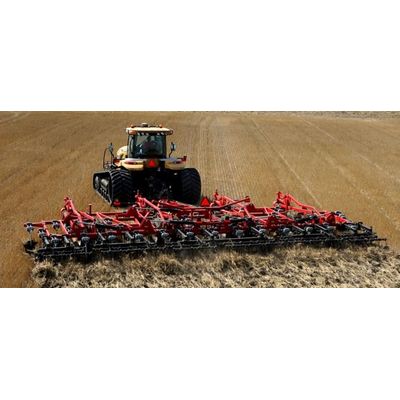

The 2500 Series Chisel Plow from Wil-Rich integrates a deeper frame front to rear in a refined design, compared to its predecessor. The deep frame utilizes four ranks to improve the flow of heavy residue from today’s higher yielding crops. The 2500 Series not only utilizes a deep frame, but also, 3/8″ (9 mm) thick steel for even more strength. This makes it one of the strongest tillage implements on the market. The Wil-Rich 2500 Series Chisel Plow is available in 12 or 15-inch (30.5 or 38.1 cm) shank spacing and with trip pressure options of 650 lbs. (295 kg) or 1,000 lbs. (454 kg). Select sizes are also available with either a level lift or floating hitch. This allows it to be built to accommodate the specific needs of your operation.

Most popular related searches
Main Frame
  • 13` main frame
  • 4-bar welded frame
  • 4 x 4" tubular frame
  • 140" front to back
  • Over-center folding wings
Shank Spacing
  • 12 or 15" spacing
Hitch
  • Cat hitch – for use with clevis-type drawbar
Hydraulics
  • Single-point depth control
  • Two main lift cylinders
  • One wing transport fold cylinder on 3` and 6` wing models
  • Two wing transport fold cylinders on 9` and 12` wing models
Shank Options
  • 650-lb. 1 ¼ x 2 x 32" extension spring shank
  • 1,000-lb. 1 ¼ x 2 x 30" compression spring edge-on shank
Gauge Wheels
  • Hydraulically controlled on floating hitch units (31x13.5-15)
  • Ratchet adjust on level lift units (9.5Lx15)
Safety Equipment
  • Safety chain
  • Transport warning light package
