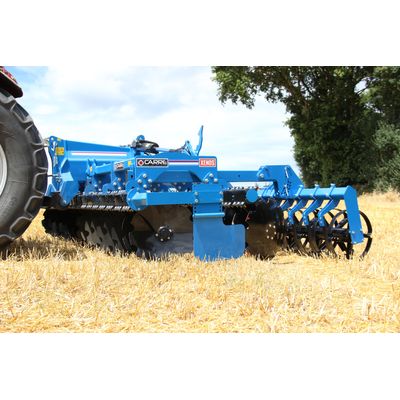

Carre XENOS - Model HD -Cultivator with Discs
A polyvalent tool, limiting using cost (fuel consuming) & maintenance. XENOS HD is a polyvalent tool, limiting using cost (fuel consuming) & maintenance. It allows to work at depths from 5 to 15 cm in the presence of important organic debris without risk of jamming. XENOS HD is provided with notched discs (Ø510mm ou Ø610mm) to work in the most difficult conditions. Those discs provide a large under beam clearance respectively from 800 mm and 900 mm to work even with a large quantity of residues Each disc is mounted on an independant arm with 100 % sealed hubs and oversized bearings to absorb efforts. Each disc has a rubber shock absorber to provide elasticity. Each rubber shock absorber has stops to be maintain despite vibrations. Available from 3 to 6 m!
- Double hydrau-mechanical safety locking (transport and work)
- TRACTEUR2 types of discss to be chosen
THE FRAME
- 3 point Hitch between clevis N°2/3 – Pin N° 2/3
- Welded frame main tube square 300×300
- Front square beam 100×100 and rear rectangular beam 200×10
- 2 disc carrying bars 80×80 – inter-bar spacing 1 m
- Hydraulic folding at 2.50m – by 2 double acting cylinders, withhydraulic security.
- Hydraulical locking and unlocking of the extension at work
- A pair of parallelogram mounted lateral deflectors
- Lateral levelling disc on equipment
- Road light and signals included
- Notched discs Ø510mm, thickness 6
- Assembly at 260mm on a same beam
- Independent discs support
- Rubber shock absorber
- Sealed bearing & without maintenance
- Hub taken outside the disc.
- Attack angle is 17° on the travel direction and 7° on the lateral direction
- Distance between two disks is 130 mm
- Under chassis clearance = 800mm
- Notched discs Ø 610mm ,th. 6
- Assembly at 260mm on a same beam
- Independent discs support
- Rubber shock absorber
- Sealed bearing & without maintenance
- Hub taken inside the disc.
- Attack angle is 17° on the travel direction and 7° on the lateral direction
- Distance between two disks is 130 mm
- Under beam clearance : 900mm
