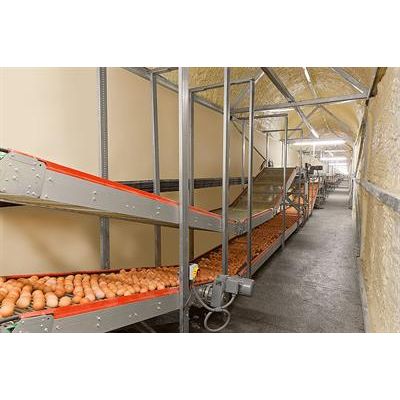

Curve Conveyors For Egg Collection Systems
Custom-made egg cross transport. Different farm layouts as well as differences in height often require individual solutions for egg transport. Curve conveyors are commonly used as cross collection because, thanks to their flexibility, they can be adapted to any type of layout.
The core part of each curve conveyor is a galvanized or plastic-coated chain that consists of two hardened outer chains with weld-on cross bars. The cross bars of the standard conveyor chain are all on the same level so that the eggs are transferred to the chain smoothly and do not accumulate along the inner radius of the curve.
The distance between the cross bars allows for an ascending gradient of up to 20°. Standard bends of 180°, 90° and 45° are available to create curves. The conveying capacity is determined by the conveying speed and the effective width of the curve conveyor. When using elevator and lift systems, deflectors reduce this effective width by 100-120 mm in the transfer area.
