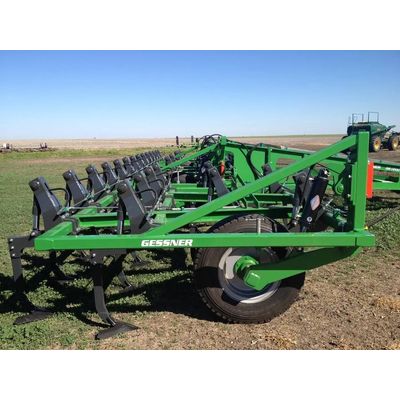

Gessner - Model HR1200 -Hydraulic Release Tyne Chisel Plough
Get your ground and soil preparation done faster with Gessner’s innovatively engineered range of chisel ploughs boasting quality manufacturing. These Get your ground and soil preparation done faster with Gessner’s innovatively engineered range of chisel ploughs boasting quality manufacturing. These time-proven machines will outperform and outlast in even the toughest environments, giving you lower maintenance and repair costs, and less downtime. Gessner offers both HR1200 Hydraulic Release Tyne Chisel Plough and a Rigid Tyne Chisel Plough, ensuring that all of your broadacre ground preparation requirements are catered for. The combination of our Australian designed and manufactured heavy-duty frame and field-proven units provides unmatched strength, durability and longevity in tough tillage conditions.
Hydraulic Tyne Chisel Plough Features
- HR1200 chisel plough frames range from 3m (10ft) to 16.4m (54ft) working widths
- The specially designed multi-section frame is available in a single-fold configuration, or as a rigid trailing frame depending on machine width and application requirements
- Highly durable hydraulic release chisel plough tynes featuring quality jump cylinders
- Hydraulic phasing depth wheels varying in size depending on frame configuration
- 15R x 22.5 super singles on 4.8m centre sections
- 49 x 17 x 30 Aero tyres on 6.1m centre sections
- All wings feature 10.00 x 20 truck tyres
- Safety chains feature on 12.8m (42ft) frame configurations and above.
Rigid Tyne Chisel Plough – Features
- Rigid tyne frames range from 3m (10ft) to 12.8m (42ft) working widths
- The specially designed multi-section frame is available in a single-fold hydraulic configuration for machines 6.7m (22ft) and above. Alternatively rigid trailing frame configurations are available for machines 3m (10ft) to 8.5m (28ft) depending on application requirements.
- Various wheel configurations are available depending on frame width
- 7.50 x 16 compactor tyres on 3m (10ft) to 3.6m (12ft) machines
- 10.00 x 16 x 8 ply stabiliser tyres on 4.8m (16ft) machines
- 15R x 22.5 super single tyres on 6m (20ft) to 8.5m (28ft) machines
- All wings feature 10.00 x 20 truck tyres
- Safety chains feature on 10m (34ft) frame configurations and above.
Optional Extras for Shank Configuration
- 250mm penetration sweeps
- 406mm penetration sweeps
- 75mm x 20mm reversible chisel points
- 3-1/2” x 5/8” Plough Bolt & Nut
- 2-1/2” x 5/8” Plough Bolt & Nut
