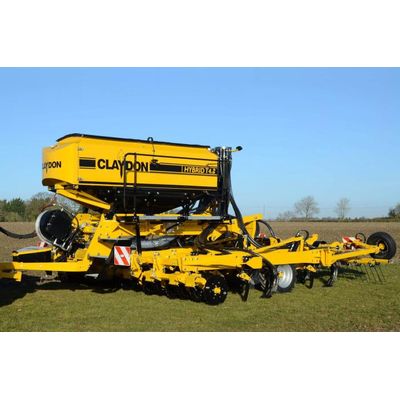

Claydon - Model T4.8 -Hybrid Trailed Drill
Fitted with a 3,500l capacity hopper, the T4.8 can be split 60:40 between seed and fertiliser. The leading tine set-up is fitted as standard with a range of front and rear toolbar and tine and disc options available for every sowing scenario.
Most popular related searches
trailed drill
seeding rate
fertilizer placement
seeding
tine
fertilizer
variable rate seed
plough
cultivator
tractor tyre
Design features
- Large residue clearance
- Light and smooth on headlands –lifts on depth wheels.
- Floating seeding chassis independent of hopper.
- Follows contours with centrally mounted depth wheels.
- Levels fields with ground levelling chassis design.
- Double levelling tool bar for consolidation
- High grip with up to 50% weight transfer to tractor.
- Large cleated tyres ensure light travel over fields.
- No capping: depth wheels run on undisturbed soil.
- Constant seed depth from very solid sprung seed tines.
- Hydraulically adjustable depth control.
- Targeted fertiliser options
Reduce costs
- Eliminate unnecessary cultivations
- Large fuel savings
- Minimal moving and wearing parts
- Low wearing parts costs (approx. £2 per acre)
- Low horsepower requirement (approx. 50-65 hp per meter)
- Long-life tungsten carbide leading times.
- Approx 1/3 of cost of ploughing and ½ cost of mintill
Easy to use
- Robust, simple drill design
- Easy calibration – intuitive controls
- Quick fit seeding option
Save time
- Eliminate unnecessary cultivations
- Minimal moving and wearing parts to change
- Quick fit seeding shares and boots
- Approx 1/5 time of ploughing and ½ time of mintill
- Daily output*: (ha): 35
- Minimum power requirement*: (hp): 250
- Road transport width: (m): 2.90
- Weight: (kg): 6,200
- Height: (m): 3.30
- Depth: (m): 8.16
- Hopper capacity:: 3,500 seed only (60:40 seed: fert)
- Seeding tines:: 15
- Fan:: Hydraulic
- Artemis metering control:: Standard
- Tramlining:: Standard
- GPS variable seed rate:: Optional
- Pre-emergence markers:: Optional
- Marker arms: Optional
- Vision kit (work lights & cameras): Optional
- Front tines and 7” A shares:: Standard
- Double rear toolbar:: Metal boards and harrows standard (with options)
- Stone protection:: Optional
- Fertiliser placement with seed or below:: Optional
- Front toolbar:: Cutting disc standard (press wheel option)
- Blockage sensors:: Optional
- Brakes:: Optional
*typical/suggested
