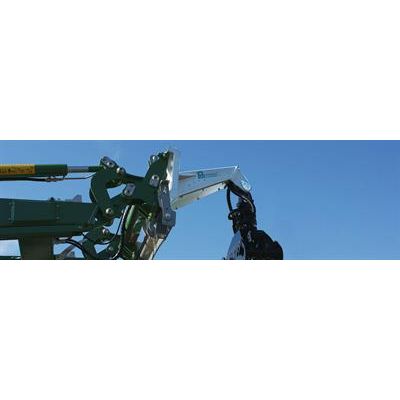

Pfanzelt - Model RZ230 - Hydraulic Logging Grabs
The hydraulic RZ230 logging grab is supplied with attachment block for front loaders and 3-point hitch. The maximises flexibility when forwarding or loading logs. Forwarding and loading work can be performed significantly faster with the logging grab. Furthermore, no effort is required by the operator and he does not have to get out of the cab. The curved tooth rail between the lower arms can securely raise and carry fixed lengths. The gripper is open/closed and the rotator turned by an electrical switch.
Most popular related searches
- Attachment block for front loaders (Euro mounting) and 3-point linkage (Cat.II)
- Professional clamshell grab with 0.23 m2 cross-sectional area and 1.25 m opening width
- Electrical switching between gripper and rotator (double-action hydraulic connection required)
- Weight: approx. 300 kg
- Attachment block for front loaders (Euro mounting)
- Attachment block for 3-point linkage (Cat. II)
- Continuous rotator 4.5 t
- Gripper opening width 1,250 mm
- Gripper cross section 0.23 m²
- Weight approx. 350 kg
