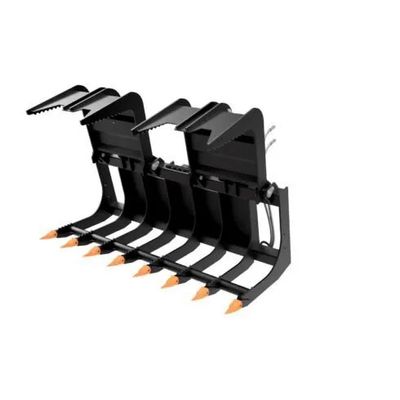

Industrial Root Grapple
Meet the newest grapple in the Erskine arsenal. Made to tackle a multitude of tasks big and small, the RGX is up to the task even on the largest CTL’s. The innovative replaceable digging teeth give the best subsoil penetration when needed and longevity. The dual lid grapples not only grip uneven loads but also back drag when fully open for faster clean up.
- Unique geometry allows grapples to backdrag debris when fully open
- Replaceable digging teeth for penetrating hard ground and scarifying top soils
- Optimal leading tine angle and round support bar make operation in uneven ground effortless
- Massive 41” opening moves debris faster with less trips
Model : 72” : 84”
Part Number : 901926 : 901924
Operating Weight : 1000 lbs. : 1100 lbs.
Shipping Weight : 1050 lbs. : 1150 lbs.
Operating Width : 73.6” : 87.3”
Operating Height (Grapples Closed To Top Of CYL Cover) 3 : 36.25" : 36.25"
Depth Of Tine From Tooth To Front Face Of Tines : 29" : 29"
Grapple Opening : 41" : 41"
Center Tine Spacing : 9.7" : 9.7"
Primary Material : .5" Grade 50 : .5" Grade 50
Cylinder : 2" x 8" : 2" x 8"
Cylinder Cover : Full : Full
LH or RH Hose Routing : Included : Included
HYD Junction Block For Even Flow To Cylinders : Included : Included
Replaceable Teeth : Pin On : Pin On
Step Bent Grapple Tops : .25” Grade 50 : .25” Grade 50
Completely Greasable Pivot Points : Included : Included
Serrated Tines And Grapples For Added Grip : Included : Included
Intigrated Hard Stop For Both Open And Closed Positions : Included : Included
Square Tube Frame : 4" x 4" x .25” : 4" x 4" x .25”
Tine Gussets : .5” : .5”
