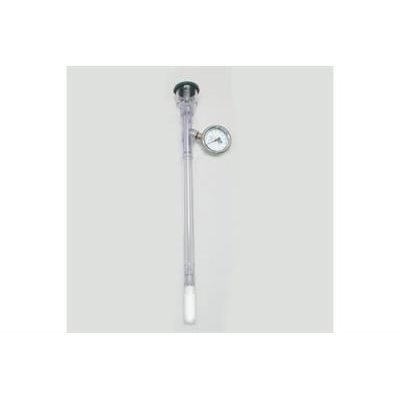

EijkelkampModel 14.04.04 - Jet-Fill Tensiometers

SHARE

The Jet-fill tensiometer basically has the same components as the standard tensiometer but is equipped with a reservoir and a refill mechanism. At a push of the button the Jet-fill mechanism instantly injects water from the reservoir into the body of the tensiometer and removes accumulated air. This tensiometer can be provided in different lengths as well.

Most popular related searches
  • Direct read out of plant water stress
  • Simple purely physical operating principle
  • Set perfect for schools and horticulturists
  • Exchangeable porous ceramic cups
  • Simple installation
  • Jet fill type can be field refilled more easily
Remarks
  • Need for infield refilling after drying of soil
  • Not for extensive cultures (too dry)
  • Use 14.27 for increased range suction values
  • Not frost resistant at ceramic cup
  • Maximum measuring depth: 150 cm
  • Measuring accuracy: ± 2.5 hPa
  • Measuring range: 0...850 hPa
  • Porous material (cups): ceramic
  • Reading accuracy: 2%
  • Registration type: manual
  • Volume of material needed: 20 ml
  • Irrigation research
  • Soil moisture measurements
