Marangon - Model MDN - Lateral Mower

SHARE

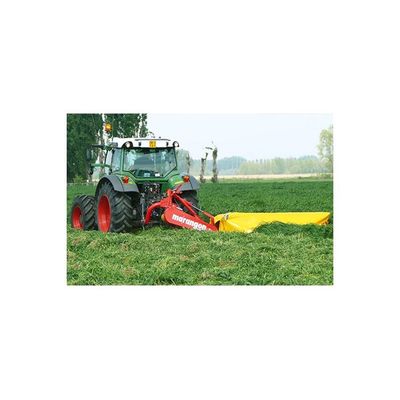

Lateral mower coupled to the tractor with the 3 point of the tractor, first and second category. Renewed in aesthetics and reinforced in the structure the MDN mower models have been developed to meet increasingly demanding working conditions, dictated by ever-widening surfaces and smaller working times, to the benefit of productivity..  The primary transmission takes place through four SPBX toothed belts, while the secondary gear is used with oil bath gears.

Most popular related searches
mower unit
disc mower
tractor
mower equipment
mower tractor
  • The minimum power absorption to the PTO makes the MDN model applicable to low power tractors as well.
  • The cut adjustment is done by the third point of the tractor which allows to vary the angle of the mowing unit
  • The mower is equipped with a spring cushion acting on the entire cutting bar allowing optimum set up according to ground conditions and the possibility of working at a negative angle of 45 °.
  • The fulcrum point of safety is located in the steering axle and allows for a suitable backstroke with obstacles.
  • Parallel lifting by the ability to maneuver the mower during working phases with the lifting piston without the shoe touching the ground.
  • A simple effect cylinder allows the mower to be positioned vertically for road transport and for less space when storing it.
  • As a standard, there is a swath kit with circular conveyor and a cone disk on the right side(travelling sense)

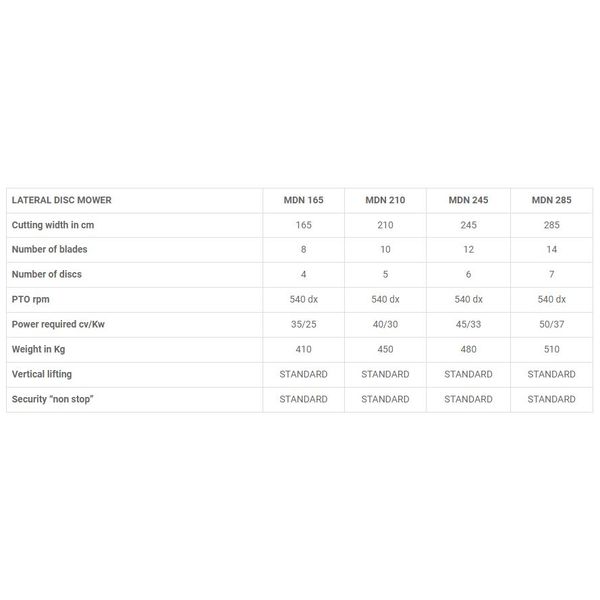

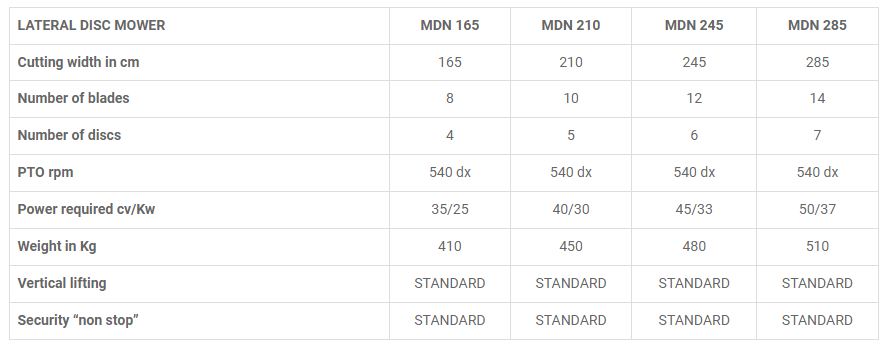

  • The MDN model is available in mt: 1.65, 2.10, 2.45 e 2.85
