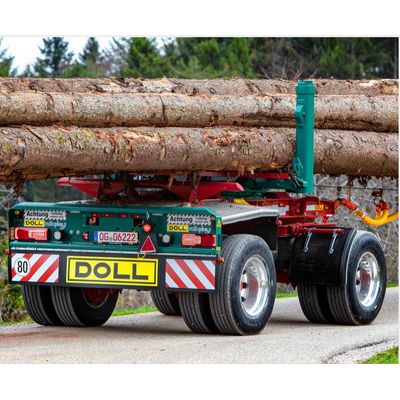

Doll - Long Timber Trailer Combination
Built for long-term reliability in long timber transport. The DOLL long timber combination is known for its tried-and-tested frame construction – which is designed for maximum stability – as well as its class-leading forest steering technology and its unique electronic operating concept. Comprised of a superstructure and trailer, this DOLL vehicle is one of the lightest long timber transport options. Transporters around the world rely on DOLL`s uncompromising quality and long service life – made in Germany, since 1878.
The DOLL® long timber superstructure can be fitted to all well-known truck brands. Tried-and-tested assemblies and flexible configuration options ensure that we can create the perfect vehicle for your requirements.
Facts + components- Individual auxiliary frame concept in fine-grained steel
- Compatible with all well-known crane brands
- Flexible and fast installation of additional equipment
- Rigid or hydraulically extendable bolster (perpendicular angle)
- Neutral and comprehensive advice and support to help you select your crane and truck
DOLL®`s sophisticated hydraulic steering concepts are market-leading. The intelligent electronic ratioplus system is designed for maximum tracking and an even better safety performance. Other variants include low-wear compact steering or the robust ratio steering system. In conjunction with the stable frame construction, the advantages of the DOLL® self steering dolly trailer are fully maximised in any application.
Facts + components- Maximum stability and streamlined construction
- Lightweight design for higher payloads
- Mechanic or pneumatic suspension, depending on application
- Full LED lighting at rear with dynamic indicators and flashing side marker lights
- Bolted design for all attachment parts
- Mechanically or hydraulically adjustable stakes
Modern eight-stage cathodic dip coating (CDC) and powder coating process as standard.
Three-axle design with increased payload and low-wear kompakt steering available.
- Transport timber lengths of up to 22 metres
- Design and frame construction ensure maximum stability
- Unique DOLL tronic® operating and control system
- Three tried-and-tested steering systems to choose from
- Wide range of proven accessory parts
- Built with high-quality components and well-known brand products
Design and attachment parts
- Individual auxiliary frame concept in fine-grained steel
- Toolboxes in a range of designs
- Various ladder options
- A wide range of lighting options
- High-quality camera systems
- Weighing system
Technical data for self steering dolly trailer
- Deadweight: from 3,300 kg
- Overall length: 4,100 mm
- Wheelbase: 2,600 mm
- Number of axles: 2-3
- Suspension: mechanical or pneumatic
- Chassis: 9 t or 12 t drum or disc brakes
- Steering system: kompakt, ratio or ratioplus
- Various mechanical and hydraulic stakes
- Hydraulic or pneumatic bolster lock
- Tool boxes
- Various winches for hose
- A wide range of load securing options
- A wide range of lighting options
- Camera systems
- Weighing system
