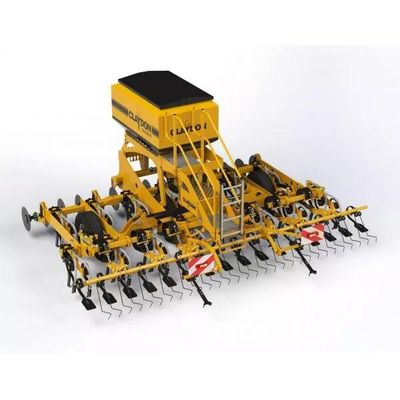

Evolution - Model M5 -Mounted Drill
The 5m seed only Evolution drill has a hopper capacity of 1,910 litres and comes with a full range of rear toolbar and seeding set-up options. The leading tine can also be swapped out for the LD lower disturbance set-up. GPS speed sensing, electronically driven metering systems and a 4-channel drill computer are fitted as standard. The M4 has a recommended minimum power requirement of 250 hp.
Most popular related searches
mounted drill
seeding rate
seed delivery
seeding
tine
variable rate seed
plough
cultivator
fertilizer
hydraulic seeding
Design
- Simple, solid design
- Longlife tungsten carbide leading tines
- Exact seed placement (wheels run on undisturbed ground)
- Self levelling chassis grades soil and follows contours
- Hydraulically controlled front disc toolbar option
- Hydraulic/shim seed depth adjustment
- Larger hopper to reduce downtime and increase output
- 90 litre hopper option with venturi, toolbar or inter-row distribution
- Quick-fit interchangeable seeding kits
Reduce costs
- Unnecessary cultivations eliminated
- Large fuel savings
- Low running costs: minimal wearing
and moving parts (under £2 per acre) - Low horsepower requirement and fuel use –
approx. 50 hp/m - Rear toolbar dampening reduces
component fatigue and improves
transport comfort - Approx 1/3 cost of ploughing and ½
cost of min-till
User friendly
- Easy access, intuitive calibration
- Easy-access toolbox incorporated into step frame
- Quick change between different
seeding set-ups - Highly manoeuvrable
Save time
- Unncessary cultivations eliminated
- Minimal, quick-fit wearing parts
- Larger hopper to reduce downtime and increase output
- Establishment time required approx 1/5 that of ploughing and
½ that of min-till
- Daily output*: 38 ha
- Minimum power requirement*: 250 hp
- Road transport width: 2.88 m
- Weight: 3,020 kg
- Height: 2.66 m
- Depth: 4.05 m
- Hopper capacity: 1,910 l
- Seeding tines: 15
- Seed : fertiliser split: n /a
- Linkage: CAT3/CAT4N
- * typical / suggested
- Standard fit Evolution M5
- Leading tine & 180mm A shares: Standard
- Double rear toolbar
- (metal levelling boards & harrows): Standard
- Hydraulic fan: Standard
- Artemis metering control: Standard
- Tramlining: Standard
- Road lights: Standard
- Optional fit Evolution M5
- GPS variable seed rate: Optional
- Pre-emergence markers: Optional
- Marker arms: Optional
- Hydraulically controlled front disc toolbar: Optional
- Stone protection: Optional
- Low disturbance kit: Optional
- Blockage sensors (seed & fertiliser): Optional
- Vision kit (work lights and camera): Optional
- Micro granular applicator: Optional
- ISOBUS compatible: Optional
- Wheel scrapers: Optional
