Multi Outlet Set
The Multi Outlet drip sets are bundles of 4mm tubes that split the water from a Mini-Manifold to each end point dripper. Two types of end drippers are available: For a pressure water system the SF Multi Outlet set is fed via a mother dripper that controls the flow. The mother drippers are available at 2 L/hr and 4 L/hr and the Mini-Manifold is available with 4 and 6 outlets. The lowest flow is achieved by combining the 2 L/hr with the 6 outlets, i.e. 0.33 L/hr.
A set of 6 outlets in a garden application is shown in the picture below. Click here to view or download details of the SF set structure, its performance and applications for agriculture nurseries.
This type of Multi Outlet Micro Drippers can be used without the Mother Dripper in any Gravity Irrigation System and in particular for greenhouse applications.

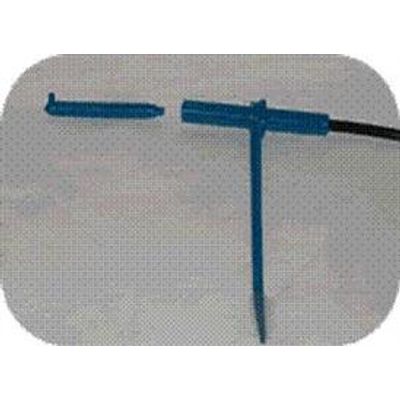

The SF dripper is also designed to be inserted into a female Barb Socket and directly into PE tubes (16 or 20 mm laterals). Download SF dual use details and applications. This method also fits to various dimensions of plots in Gravity Irrigation Systems.
