Rain-Tal Ltd. products

This tiny water spreader is one of Rain-Tal`s leading products for low volume irrigation. It generates a circular uniform droplet distribution over a range of throw diameters from 2 to 6 meters. The product is available for a variety of flow rates, from 20 L/hr (5.3 GPH) to 160 L/hr (42.3 GPH). The nominal flow rate values are for a pressure of 2 bars (30PSI) and variations of the flow under pressure are provided in the pdfFlow Rate Chart. A special high-rate / heavy duty Vibro Spreader of 240 L/hr is available.

The Turbo Sprinkler spreads water by a rotating a mini turbo swivel that ejects a jet to cover a larger wetting diameter. It generates a circular uniform droplet distribution over a range of throw diameters from 5 to12 meters, thus nicely completes our line of low volume spreaders. The products are available in a variety of flow rates, from 25 L/hr (6.5 GPH) to 300 L/hr (75 GPH). The flow rate is based on selectable nozzles, according to a color code.

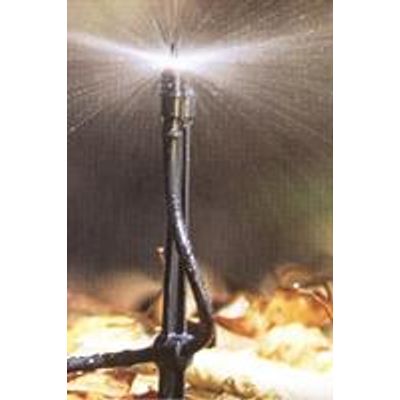

Dynamic Mister is a mini mist generator, the design of which is based on the same principles as the Vibro Spreader, i.e. with a center pin vibrating in the middle of the nozzle. It generates a uniform circular pattern, which in the upside down hanging mode (see right picture, including an anti-leak device and stabilizer weight) creates a "droplet free" mist cloud (picture below) The constant vibration prevents clogging by dirt or lime sediments in the nozzle.  The Dynamic Mister fits into any Ein-Tal socket, plunger etc.

This rotor propelled field sprinkler was historically known by the name "type 688 sprinkler" and "Windmill propeller sprinkler".

The Buzzing Dripper is a self-regulating dripper. It controls the flow rate by a vibrating valve that creates a buzzing noise while operating. The dynamic vibrations prevent the formation of salt and lime sediments that mostly clog other types of drippers. It means that this unique dripper is also a self cleaning device, which ensures a very long trouble-free operation. This noise may be useful for monitoring the dripper proper functioning, for example in gardening applications the Buzzing Dripper may be covered by a layer of gravel.

The Multi Outlet drip sets are bundles of 4mm tubes that split the water from a Mini-Manifold to each end point dripper. Two types of end drippers are available: For a pressure water system the SF Multi Outlet set is fed via a mother dripper that controls the flow. The mother drippers are available at 2 L/hr and 4 L/hr and the Mini-Manifold is available with 4 and 6 outlets. The lowest flow is achieved by combining the 2 L/hr with the 6 outlets, i.e. 0.33 L/hr.

Micro Dripping is an irrigation method that enables a very low flow rate, close to one fifth the flow of ordinary drippers. The nominal flow rate of each Micro Dripper may be as low as 0.2 L/hr and this low flow is resulting with better wetting distribution in the soil.
