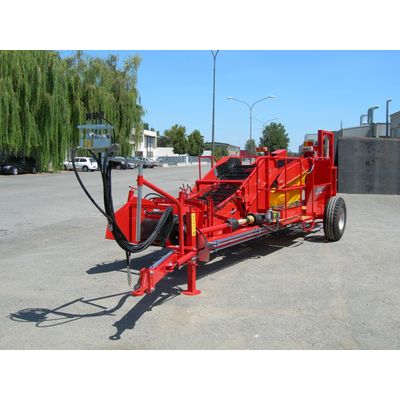

Imac Special - Onion Loader for Manual Selection
FromImac s.r.l
Potato harvester with manual selection to pick up early potatoes.
Most popular related searches
onion loader
haulm roller
onion
tractor tyre
tractor hydraulic
onion lifting
potato harvesting
haulm
potato
tractor
- Lenght 964 cm
- Width 300 cm
- Height 312 cm
- Output per 8 hours Ha/g 0,80 - 3,30
- Power requirement 75 kw
- Weight 6800 kg
- Sieving channel 80 cm
- Elevator-defoliator channel 90 cm
- Transversal channel 82 cm
- Sorting web channel 80 cm
- Scrap web channel 38 cm
- Hopper capacity 4500-5500 kg
- Hydraulic foot
- Drawbar for lower hitch with adjustable height
- 1 share blade with adjustable angle
- Floating soil feeler roller with independent adjustment
- Auto-adjustable grass cutting discs mounted on springs
- Haulm deflectors (2 pcs)
- Haulm intake rollers (2 pcs)
- Fast change of the pick up
- Rubber shakers with manually adjustable intensity on sieving web
- Cardan shaft with clutch
- Sieving web pitch 40 mm with straight bars Ø 11 mm
- Elevator web pitch 35 mm with straight bars Ø 11 mm and rubber porters
- Wide mesh haulm web around the elevator web – Vulcanized bars with rubber fingers
- 5 rows of haulm intake combs mounted on springs with manually adjustable angle
- Haulm tearing roller placed under defoliator web
- Hydraulically driven longitudinal cleaning hedgehog with retaining roller and electrically adjustable angle
- Additional hydraulic system with 2 pumps for longitudinal cleaning hedgehog, rotary comb and transversal cleaning hedgehog
- Hydraulically driven transversal cleaning hedgehog with electrically adjustable angle
- Sorting table with hydraulic adjustable speed linked to tractor hydraulic system
- Chute for discharging on both sides (1 on the right and 1 on the left)
- Large sorting table up to 6 persons reachable on both sides
- Acoustic signal
- Hydraulically driven transversal scrap web
- 4 rows of sorting rollers with progressive adjustment
- 4 rows of declodder rollers
- Hydraulically driven drawbar
- Hydraulically driven axle steering
- Electro-hydraulic controls
- Hydraulic system powered:
- A Pistons, sorting table and the hopper engine linked to the tractor system
- B) Rotary comb,longitudinal and transversal cleaning hedgehogs with independent hydraulic system
- Loose web to fill up the hopper with adjustable position and with electric control from the selection table and the tractor
- Tyres 550/60 – 22,5
- Working pressure control on feeler roller with nitrogen cylinder
- Hydraulically driven grass cutting discs (1 right and 1 left)
- 2 speed gearbox
- Hydraulic equipment for harvesting in 2 phases with rubber paddles
- Onion lifting kit with synthetic roller
- Separation kit for stones with hydraulically driven rotary brush and retaining roller (instead of rotary fingers)
- Stone hopper (with hydraulic opening)
- Additional haulm intake combs (1 row)
- Separation kit for small potatoes with hopper and an hydraulically driven discharging web (hydraulic extension)
- Fall breaker at the end of the hopper
- Road lights (without road traffic approval)
- Automatic centring of the sieving channel
- Automatic centring of the wheels
- Digging depth control through a hydraulically level wheel
- Digging depth control through a mechanical level wheel
- Automatic hopper filling up
- Electric adjustment of the web shaker on first sieving web
- Tyre 700/50 – 22,5 (1 pcs) (instead of the standard one)
- Color monitor with 2 cameras
- Parasol roof
- Supplementary haulm tearing roller (1 pcs)
- Stone hopper with hydraulically driven unloading web JP
- Hopper for small potatoes with high unloading JP
- Additional control box
- Braking system (oil or compressed air)
- Road traffic approval (valid only for Italy)
