Martin Lishman - Model P2 -Pile-Dry Grain Pedestals
Stored grain represents a huge investment. Maximising the return from this investment requires professional grain pedestals system that maintains crop quality. Pile-Dry Grain Pedestals cool crops quickly to prevent insects, conserve quality, reduce waste and meet crop assurance requirements.
Martin Lishman can draw on 45 years of proven crop storage innovation and experience to provide the most energy-efficient, cost-effective, practical and convenient solution to crop cooling, making Pile-Dry Grain Cooling Pedestals the number one choice as part of a professional crop storage system.
With faster filling systems and some stores now reaching 15 metres deep, store managers face some interesting challenges to make ventilation systems meet their changing needs. The continuing innovation of Pile-Dry Pedestals is helping to meet these challenges.
Fast Cooling and Drying
- Pile-Dry Pedestals is the fastest low volume crop cooling system, operating at 20% above the required rate. Pile-Dry Pedestals will cool grain straight off the combine, hot off the drier to increase capacity and chill the grain to avoid insects and harmful moulds.
- Pile-Dry Pedestals are the only grain pedestals of their kind that will dry grain, peas and beans using ambient air. Success depends on favourable ambient conditions, efficient fan control, fan strength and the number of fans used.
Sucking system
The grain pedestal fans are typically used to suck air through the grain. Sucking avoids condensation at the grain surface and the grain does not have to be level filled.
Easy handling
Pile-Dry Grain Cooling Pedestals are vertical and visible in the store. Typically, they are spaced at least 6m apart so loading and unloading grain around them is achieved easily.
Versatile
Pile-Dry Pedestals will cool, dry and condition grain, long or short term in bulk stores, bins and silos. They have been used with all bulk stored crops – cereals, rape, rice, maize, pulses, potatoes, grass seed, wood chip and many more – and are operated in the same way for all. Hessian sleeves prevent small seeds passing through the perforated holes while maintaining the high airflow required.
Cost-effective
Pile-Dry Grain Pedestals and Fans form a cost-effective grain cooling system with the lowest capital cost per ton stored. Increased efficiency and up to 40% lower energy costs is achieved with Automatic Fan Controllers and the StoreVent building ventilation system.
Modular

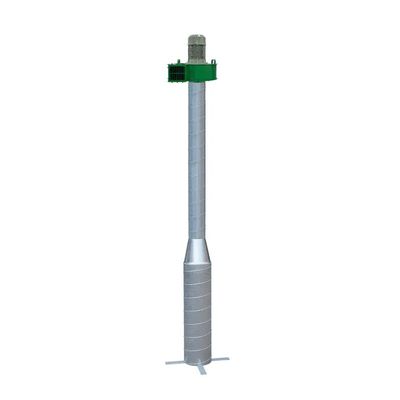

Pile-Dry grain cooling Pedestals are free-standing, metal, vertical ventilation ducts with centrifugal fans fitted into the top and moved between them. They are simple to install and leave buildings multi-purpose. Extensions can be added in multiples of 0.9 or 1.8m to ventilate grain up to 12m deep. If store walls are low or weak the grain can be surcharged around the Pedestal and slope down towards the wall or floor – the grain does not have to be level when sucking.
- c.80 to 120 tons per unit
- For grain stored at c.3m (10′) with surcharging up to c.4.5m in the middle of the store
- Allow one P2 pedestal per 6m x 6m (20′ x 20′) area – 3m from the walls and 6m between each one
- In high moisture grain (18% plus) put them closer together
- Spacings apply equally to all crops
- Basic height of 10ft (3m)
