MagFan Mini - Poultry and Pig Production Direct Drive, Ultra Efficient Wall Mount Fan
MagFan Mini is a smaller version of the MagFan. It is a direct drive fan made of high quality materials. Aerodynamic optimization in all design phases has resulted in a fan with very high energy efficiency.

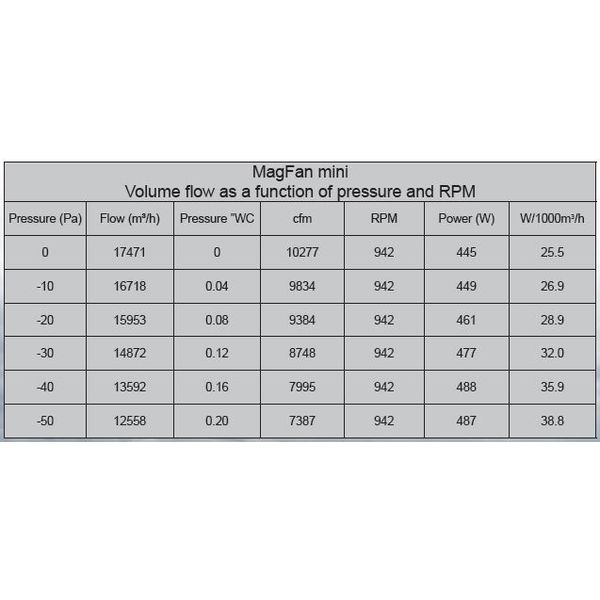

With a diameter of 740 mm (30') the capacity of 17.471 m3/hour (10,000 cfm) and a power consumption of 25.5 W/1000 m3/hour (15 cfm/Watt) @ 0 Pascal, the MagFan Mini stands out when compared to other similar size fans.
MagFan Mini is equipped with a 0.3 kW highly efficiency motor designed for both on/off and speed controlling via a variable frequency drive (VFD).
The motor for the MagFan Mini is UL/ULc certified and can run on both 50Hz and a 60Hz power grid. For more please click below:
MagDoor for MagFan Mini

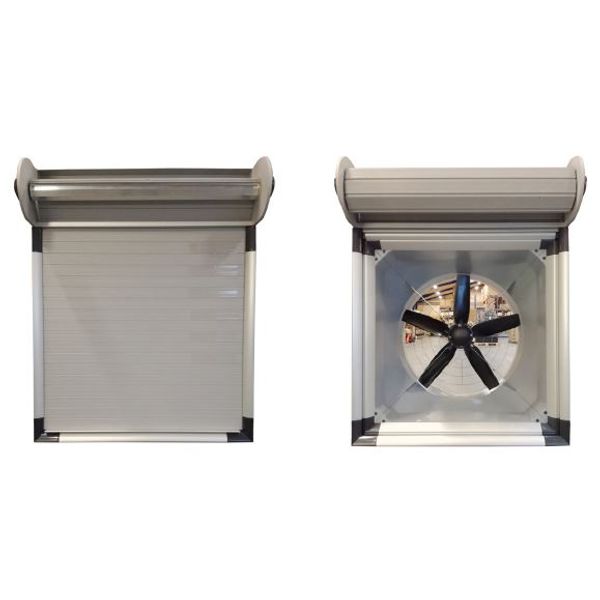

The MagFan Mini in combination with a MagDoor ensures an air tight, well insulated seal not found on any other shutter or damper on the market.
MagFan Mini is equipped with a 0.3 kW high efficiency motor designed for speed controlling. With the optional MagDrive Variable Frequency Drive (VFD), variable speed mode further reduces power consumption and allows for a much more uniform and precise airflow. The fan can also be operated on/off.
The MagFan Mini can be installed with a MagDoor. The MagDoor creates an airtight, insulated seal not found on any other shutter or damper on the market. The MagDoor is motorized and operates on a simple on/off signal.
- Motor: 3 x 230V /3x400 V: 1.6/0.95 A
- Shaft output power: 0.3 kW
- Volume flow @ 0 Pa: 17471 m3/h @ 0 Pa
- Specific consumption: 25.5 W / 1000 m3/h
- Fan RPM: 945-960 @ 50 Hz
- Materials: PP / stainless steel
