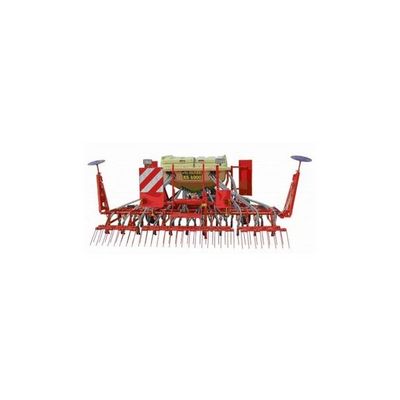

Aguirre - Model RS Series -Precision Farming Mounted Seeders

FromAguirre Maquinaria Agrícola S.L.

SHARE

An extensive range to meet the expectations of the most demanding farmer. High performance machines due to their load capacity, working widths and electronic control systems. Specifically designed to work with medium-power tractors so that sowing tasks are carried out with high precision and in the shortest possible time. Very robust but lightweight seeders, easy to manoeuvre to make sowing a rewarding task. Designed so that the sowing tubes adapt to the ground, both lengthwise and crosswise, in order to achieve a uniform depth of sowing throughout the field. The seed depth is adjusted quickly and easily by means of central control and in each lateral extension. Here you can learn more about our range for conventional tillage, minimum tillage and direct seeding.

Most popular related searches

minimum tillage

precision agriculture

The volumetric distributor is exclusively designed by AGUIRRE. Flow proportional to the forward movement in order to always maintain the desired dose.

The dosing/regulation systems allow us to sow, with absolute precision, from 1 to 300 kg/ha of any type of seed (rape, alfalfa, cereals, beans, etc.).

Adjustment of the dose is carried out via a specific window for this purpose and with the help of the flow rate table in the manual supplied with each machine.

Another emptying window allows us to change seed quickly without leaving any residue inside the hopper.

A turbine drives the air current needed to carry the flow of seeds from the outlet of the distributor to the sowing lines distributed on the seeder body.

A dispensing head, with as many outputs as there are lines located at the top of the hopper, takes care of evenly distributing the air flow and the seeds to the entire width of the machine.

Due to its power it is possible to work with power take off regimes which are not too high in order to save fuel and so that tractor driving is quiet.

A multiplication system transforms this PTO regime to the turbine revolutions needed for the different working widths.

Four levels of equipment to control the various functions of the seeder.

Basic console: forward speed, hectare-count, hopper level, distributor operating control, turbine control and general sowing cut-off.

Complete console: forward speed, hectare-count, hopper level, distributor operating control, turbine control, general sowing cut-off and partial cut-offs of the working width.

Heeling console: forward speed, hectare-count, hopper level, distributor operating control, turbine control and symmetrical and asymmetrical tramlining.

Electro drive: forward speed, hectare-count, hopper level, distributor operating control, turbine control, heeling and modulation of seeding rate.
