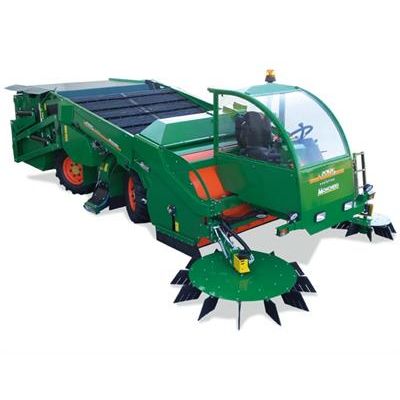

Monchiero - Model 20125 -Self Propelled Harvesters
The 20125 evolution harvester, the most powerful model in the range, has been designed for large-scale orchards. It is equipped with a powerful and reliable John Deere engine reducing fuel consumption and emissions, as well as vibrations and noise. The “Super profiled” cabin, with 3 closed sides and hydraulic lateral shifting, protects without limiting visibility; the operator can choose to operate by foot pedal or joystick, and he has total control of the machine by means of the 7” colour display of the MMC.
Most popular related searches
self-propelled harvesting
harvesting system
fruit harvesting system
fruit harvesting
fruit cleaning system
orchard equipment
orchard
fruit cleaning
harvesting operation
KIT REVERSE CAMERA
- Equipped with 5” display with automatic brightness adjustment, mirroring image, viewing angle 133°, water protection IP67, 18 infrared leds for night view up to 15 m (it is automatically displayed when reverse is selected) (Optional)
- Additional camera on vibrating screen ( sold only with reverse camera code )
- Additional camera on conveyor belt ( sold only with reverse camera).
MMC CONTROL SYSTEM:
Technology at the service of productivity
- This exclusive Monchiero patented system, based on a special hardware and software, makes work easier and faster, and optimises fuel consumption. It allows the operator to manage and control all the machine functions from a 7” colour display in the cabin.
- The all-in-one “Start / End of Line” function button is one of its most useful features: when harvesting is finished, the operator only needs to press one button to lift the pick-up and brushes, stop the rotation of the roller and the brushes,
- and decrease the engine speed. This automatic function also speeds up the line change.
- Tilt-adjustable steering column, with full instrumentation for all the machine’s functions using intuitive, easy access controls. Hydrostatic transmission control by joystick, positioned inside the armrest, and pedal.
- Double rear fan fitted with high-pressure turbine, speed-adjustable from the driving seat.
- Self-cleaning belt on the hopper for the evacuation of the leaves (option).
- Large diameter pick-up suitable for various types of fruit, fitted with a cleaning device, able to work in the most difficult conditions. Lateral brushes raising and closing hydraulically (optional).
- Hydraulically shifting front bulkhead, which caters for working with large amounts of impurities.
- High efficiency “Turbo jet” Lateral fan with infinitely adjustable speed.
- Big fuel tank 115 lt
- Air filter with automatic pre-separation of 95% of impurities.
- Wide section, low pressure tyres, with a special design to minimize the impact to the ground, and tackle steep climbs with no difficulty. 4 wheels drive, with automatic Twin-Lock differential locking device
- Removable fenders.
- Extra large belt for working with very large quantities of material.
- “BHI” integrated hydraulic block: all the hydraulic functions in a single housing.
- Automatic removal of dust from the radiator grid in any climate due to a fully automatic air flow inversion system.
- Front and rear working lights, on the conveyor belt and on front right brush
