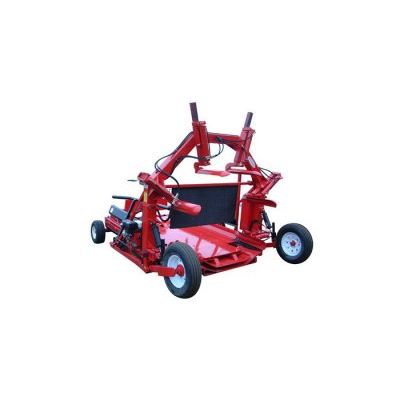

Model P-6302 - Silatube Round Bale Wrapper
Shape of the bales : Round, square or rectangular. Overall length at work : 153` / 3886 mm. Overall length for transportation : 176` / 4470 mm. Overall width at work : 112` / 2845 mm. Overall width for transportation : 100` / 2540 mm. Overall height for transportation : 93` / 2362 mm.
Bale diameter : Round : 48" to 66" / 1219 à 1676 mm. Square or rectangular : 36" high x 60" long max. / 914 high x 1524 mm long max.
Engine: Honda 9 HP
Manual starting : Standard
Electric starting : Option
Two stages hydraulic pump : 3 gal at 2800 psi / 11 gal at 1400 psi
Front hub (capacity - number of bolts) : 2500 lbs / 1136 kg - 5
Rear hub (capacity - number of bolts) : 2500 lbs / 1136 kg - 5
Front rim (dimensions - number of bolts) : 10" x 6" - 5
Rear rim (dimensions - number of bolts) : 15" x 5" - 5
Front tires (with tube) : 20.5" x 8" x 10" - 4 ply
Rear tires (with tube) : 7.6" x 15" - 8 ply
Performance : 70 to 100 bales / hour
Oil tank capacity : 5.75 US gal / 4.75 gal imp / 21.75 liters
Hydraulic steering adjustment : Standard
Work lights : Option (P-6245)
Road lights : Option (P-6240)
Motorized moving kit : Option (P-6325)
Hitch weight (approx.) : 1524 lbs / 693 kg
Total weight (approx.) : 4215 lbs / 1916 kg
