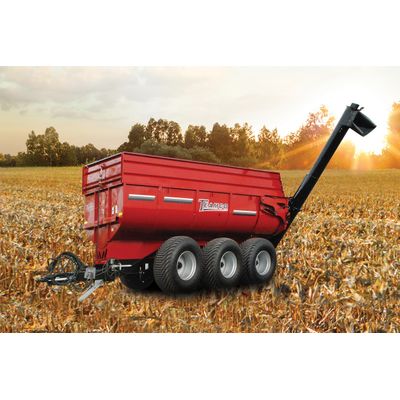

Teamco - Model BGE-2438 - Sillage and Grain Cart

Model: BGE-2438

Capacity Without Extension: Capacity With Extension 30’’

• 24 cubic meters: 38 cubic meters
• 695 bushels: 1100 bushels
• 9 tons of silage: 14,25 tons of silage
• 19 tons of corn: 30 tons of corn

25’ long dump box placed on a 4 wheel frame (24’ lg), having a 37 metric ton capacity.

Capacity Without Extension: Capacity With Extension 30’’

• 29 cubic meters: 46 cubic meters
• 825 bushels: 1300 bushels
• 11 tons of silage: 17,5 tons of silage
• 23 tons of corn: 36,5 tons of corn

29’ long dump box placed on a 4 wheel frame (28’ lg), having a 49 metric ton capacity.

Capacity Without Extension: Capacity With Extension 30’’

• 34 cubic meters: 54 cubic meters
• 960 bushels: 1525 bushels
• 13 tons of silage: 20,65 tons of silage
• 27 tons of corn: 42,90 tons of corn

• Hydraulic steering and suspension
• 16 000 lbs axles and hubs
• Automatic lock down system on the rearmost
• suspension cylinders
• Telescopic dumping cylinder

Full sized fully opening hydraulic rear door, including:

• Adjustable lock
• 12’’ x 12’’ opening with manual gate and guiding chute
• Exterior reinforcing structure for improved rigidity
• Exterior ladder
• Led work lights (2)
• Road lights kit
• Quick connectors for hydraulic/electric controls and four leg supports allow easy removal of the dump box.

• Outside box width: 10’6’’
• Outside tire width: 11’8’’
• Box height without extension: 6’8’’
• Box height without extension, on a frame with 850/50-30.5 tires at mid-suspension level: 10’5’’
• Total Box height with extension, on same frame: 13’

Unloading screw with main rotation, tube deployment front panel hydraulically driven.

N.B.: The screw needs an oil input power of 15gpm at 2500psi.
