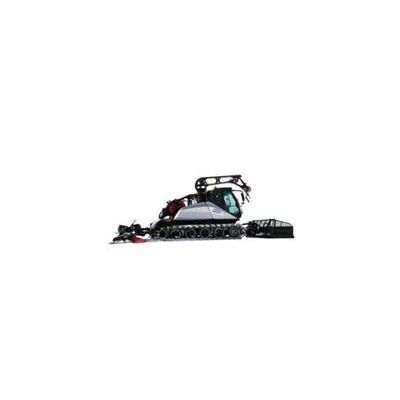

Prinoth - Model Leitwolf - Leitwolf X -Snow Groomers
The unrivalled standard: Power and reliability. With 530 horsepower (390 kW), LEITWOLF is the undisputed alpha of snow groomers. Tested to the very limits, the MTU six-cylinder diesel engine with 2,460 Nm torque unites strength and efficiency for absolute reliability in extreme Alpine situations. The high-track working surface with an unusually long track width of 4.5 m (177 in.) ensures that the LEITWOLF is especially sure-footed in challenging terrain and its grooming performance is simply unique. The LEITWOLF X, the park version of LEITWOLF, also features an even larger range of motion for blade and tiller. Thanks to the versatile adjustably of its working surface, relying on LEITWOLF and LEITWOLF X is both time saving and sustainable. The LEITWOLF not only complies with “Stage IV/Tier 4 final” exhaust emission standards but also unites high power and grooming performance with low fuel consumption.
Exclusively from PRINOTH: Extras for perfect slopes
4.5 t pulling force at up to 100% gradient – no wonder that the AUTOMATIC winch is so popular in challenging terrain. The MASTER Blade, with its tactically balanced angle, customized shape, and specially designed blade teeth to bite through any ice type, stands for maximum thrust and efficiency. PRINOTH’s patented parallel offset, of the robust POWER tiller, provides optimal results even during transverse crossings. It guarantees a perfectly groomed slope finish thanks to its fine-grained tilling results.
Details at a glance: Comfort and class
The central seating position within the operator’s cab provides an optimal field of view when maneuvering. The multifunctional joystick, the 8.4” color display and the luxurious Recaro™ seat ensure precision and comfort while working. The LEITWOLF, a top-class, does-it-all snow groomer, even features a body design by Pininfarina, the famous Italian design studio that worked with Ferrari, Maserati – and PRINOTH.
- Engine Model: MTU 6R 1300 | OM 471
- Exhaust emission standard: Stage IV/Tier 4 final
- Power output (ECE): 390 kW/523 bhp @ 1,800 rpm
- Torque: 2,460 Nm @ 1,300 rpm
- Working width: 4,500 mm
- Overall vehicle length with/without attachments: 9,195 mm/4,660
- Weight with aluminum track, blade, tiller and winch: 13,985 kg
- MASTER blade: 12-way front blade
- Quick-change system and hydraulic side wings
- Side wings open/closed: 5,950/5,050 mm
- POWER Tiller: Without/with hydraulic side wings: 5,320/6,520 mm
- Quick-change system
- Winch:
- AUTOMATIC Winch
- 4.5 t pulling force
- Maximum cable length: 1,200 m
- Park Functions - LEITWOLF X: Inclinometer, Tape measurement tool, Park blade, a.o.
- Special Features: Parallel movement of the tiller, Individually customizable blade control, active undercarriage
