K-Line - Model 1000 Series - Spring ...

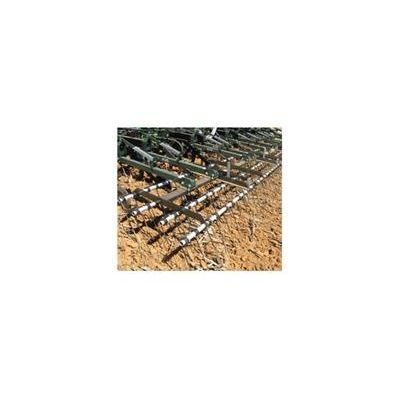

K-Line - Model 1000 Series - Spring Tine Harrows

The K-Line 1000 Series Mounted Spring Tine Harrows have excellent levelling and trash handling ability. The wide range of spring tine harrows available ensure there is a spring tine harrow to suit most soil conditions and working methods.

Most popular related searches

Long 450mm tines
Wide row spacing

Allow quantities of trash to flow more freely through the harrow

Adjustable tine angles

Increased trash flow and flexibility in the field

Variable down spring pressure
High performance spring steel

Results in excellent levelling of seedbed

Triple wound tines

Designed for less side movement (i.e. better levelling)

High performance tines fabricated from steel section

Increased strength, durability and working life

‘Fold under’ tines

Allow for ease of reversing and turning

High lift position

Easy transport

1090 Series Spring Tine Harrows

The K-Line 1090 Series Spring Tine Harrow is a robust and reliable harrow featuring:

10mm high performance spring steel
9” (229mm) tine leg spacing
18” (450mm) tine length for improved trash flow

1290 Series Spring Tine Harrows – 1/2” Tines

The K-Line 1290 Series Spring Tine Harrows are manufactured for improved soil levelling in more demanding conditions, featuring:

12.7mm high performance spring steel
9” (229mm) tine leg spacing
18” (450mm) tine length for improved trash flow

1612 Series Jumbo Spring Tine Harrows – 5/8” Tines

Designed for heavier soil types, the 1612 Series Jumbo Spring Tine Harrow is built to allow increased trash flow. These EXTRA HEAVY DUTY tines are built with:

5/8” spring steel
12” (305mm) tine leg spacing
28” (711mm) tine length for increased trash flow
