Model 14.04.03 - Standard Tensiometer
FromRoyal Eijkelkamp

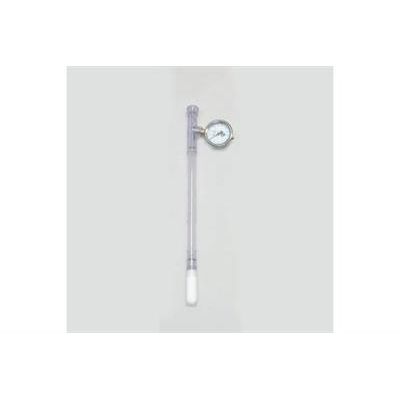

The standard tensiometer consists of a clear transparent plastic tube with a ceramic cup at the bottom end and a manometer at the top. The standard tensiometer is delivered in various lengths allowing the execution of simultaneous measurements at various depths in the root zone. For pre-drilling special auger sets can be provided.
Most popular related searches
soil moisture monitoring
irrigation soil moisture monitoring
tensiometer
plant watering
irrigation research
root zone
irrigation soil moisture
plant stress
horticulturist
irrigation
Benefits Tensiometers
- Direct read out of plant water stress
- Simple purely physical operating principle
- Set perfect for schools and horticulturists
- Exchangeable porous ceramic cups
- Simple installation
- Jet fill type can be field refilled more easily
Remarks
- Need for infield refilling after drying of soil
- Not for extensive cultures (too dry)
- Use 14.27 for increased range suction values
- Not frost resistant at ceramic cup
- Maximum measuring depth: 100 cm
- Measuring accuracy: ± 2.5 hPa
- Measuring range: 0...850 hPa
- Porous material (cups): ceramic
- Reading accuracy: 2%
- Registration type: manual
- Volume of material needed: 20 ml
- Irrigation research
- Soil moisture measurements
