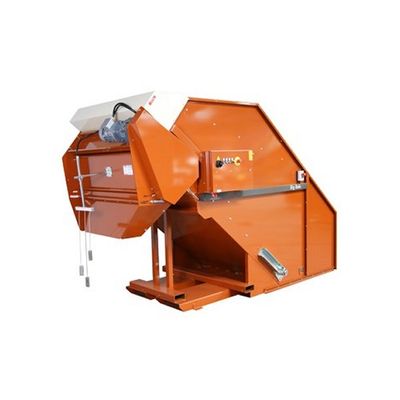

Javo - Substrate Dispensing System for Big Bales with Electric Tilting
An electrically driven tilting system, suitable for a smooth tilting of substrate from a big bale. Its automatic dispensing system delivers the substrate efficiently and worry-free. This machine is suitable for all standard big bales.
Worry-free and efficient substrate dosing
This dosing unit can process substrate or bark from big bales without problem. The electrically powered pivot system allows the bale to be tilted steplessly and safely and the environment stays clean.
The Javo Big Bale is easy to use and is maintenance free. The machine is easy to move with a forklift truck. Optionally, the Javo Big Bale can be fitted with wheels making it easier to move using a pallet truck.
How does the machine work?
Automatic dosing feeds the desired amount of material straight to the discharge outlet.
The feed chain scrapes the soil loose from the big bale and feeds it in. As standard the machine is fitted with an adjustable fluffing mechanism to bring the substrate to the desired degree of roughness. A level regulator with three adjustable measuring points is fitted underneath the discharge outlet which controls the supply of soil to the connected machine as required.
- Simple operation
- High quality chain and sprockets
- Accurate substrate dosing
- Suitable for all standard big bales
- Maximum retention of structure, volume and aeration
- Safe set-up due to integrated pivot system
- Low maintenance
- Level regulator for automatic dosing
- Sprung safety cover for irregularities in potting soil, adjustable per product
- Suitable for potting soil and bark in various types of packaging
- Moveable design
- Water dosing system
- Heightening set (350mm)
- Suitable for : all standard big bales
- Capacity : (depending on machine configuration, pot and soil)
- Length : 3.480mm
- Width : 1.696mm
- Height : 2.195mm
- Weight : 1.380 kg
- Voltage : 400V 50Hz 3~ +N +PE / 220V 60Hz 3~ +PE
- Power connection : 16A, 5 pins CEE plug
