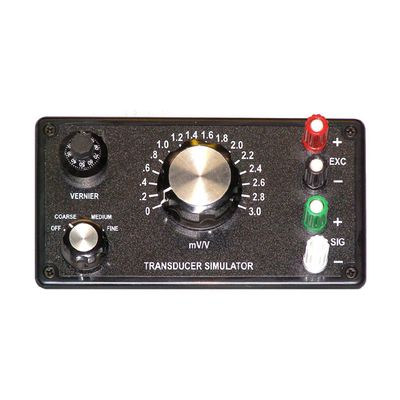

Controlweigh - Model TS-16V -Transducer Simulator
FromControlweigh
Impedance: 350 ohms nominal. Output Ranges: Fixed rotary switch: 0 to 3 mv/v in 15 steps of .2 mv/v. 10 turn vernier with locking graduated dial. OFF: Rotary selection + 0.0 mv/v. FINE: Rotary selection - 0.01 mv/v to +0.2 mv/v. MEDIUM: Rotary selection - 0.04 mv/v to +1.0 mv/v. COARSE: Rotary selection - 0.08 mv/v to +30 mv/v. Note: Vernier ranges may vary from above.
Most popular related searches
- Output Accuracy:
- Typically : + 0.008%, + 0.00024 mv/v ,
- Max : + 0.020% of full scale, + 0.00060 mv/v
- or +1 microvolt, whichever is greater
- Zero Offset:
- Typically : + 0.00009 mv/v,
- Max : + 0.0005 mv/v,
- or +1 microvolt, whichever is greater
- Temp. Coefficient: + 5 ppm/°C
- Excitation: 20v ac/dc max
- Termination: Binding posts - accepts standard banana plug or up to No. 14 wire
- Weight: 1Lbs.
- Dimensions: 5.9"L x 3.2"W x 2.75"H
- Enclosure: ABS Thermoplastic Case
- Made In USA
- Highest Quality Components
- 100% Tested
- Call for OEM & Quantity Pricing
- Custom Build Available
