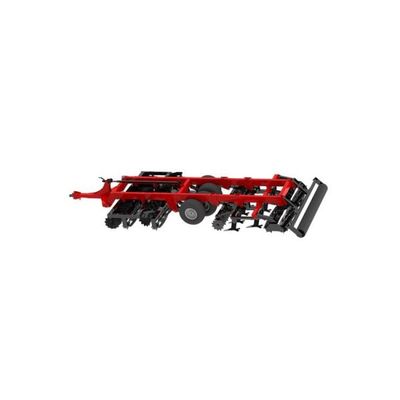

Tillage - Model 2000 Series - True One Pass Tillage for Narrower Scale
The Model 2000 offers true one-pass tillage on a narrower scale than the Model 4000. With a 12-ft working width and seven rows of implements, the Model 2000 can work in open fields or early-age orchards, condensing 2-10 tillage passes into one pass. With an 8 acre/hour complete tillage rate, the Model 2000 is great for smaller farmers, lower horsepower tractors, and tighter spaces. Custom setups are available to optimize your tillage. Working depths of 8-20” available. Units transport at 13.5-ft wide. Horsepower of 350+ required.
Most popular related searches
tillage
conservation tillage
tillage machine
soil compaction
tillage operation
secondary tillage
spring tillage
post-harvest
tractor
primary tillage machine
- True One Pass Tillage: The 18-ft-wide Model 4000 and 12-ft-wide Model 2000 both offer complete tillage functionality, designed to replace both primary and secondary tillage implements.
- Convert your field from post-harvest to planting-ready in one pass. Customizable setups are available for multiple conditions, including rocky soils, deep traffic pan (compacted layer), and abrasive soils.
Conservation Tillage
- Operating at the optimal 5 to 7 mph, the OPTIMIZER Model 4000 completes 8 to 12 acres per hour while the Model 2000 completes 6 to 9 acres per hour.
- Fuel and labor are reduced by 50% or more. Soil compaction is reduced, and soil tilth is improved for long term benefits. Timely fall and spring tillage can increase yields and allow more acres to be farmed.
- Results of an EPA study show dust and air pollution are reduced by up to 80% and engine emissions by an upgraded high-horsepower tractor are reduced by up to 99%. As a conservation tillage implement, subsidies may be available for your purchase in some states.
- Length: 40 ft
- Working Width: 12 ft
- Transport Width: 13.6 ft
- Weight: 26-30,000 lbs
- Min. Tractor Horsepower: 350 Hp
- Max. Working Depth: 20"
- Setup Options
- DISK: HD Floating Disk Assembly w/ 30" Disks
- MID REEL: Double Row 18" Reel Assembly**
CHISEL OPTIONS:
- Finish Chisel 10-Shank Assembly w/ 6-12" Depth & 12.5" Spacing (Offered with attached Coulter Assembly or Roller Assembly with 12-16" Cast Rings)
- Intermediate Chisel 8-Shank Assembly w/ 10-16" Depth & 16" Spacing (Offered with or without Hydraulic Reset Option for stony ground)
- Deep Chisel 4-Shank Assembly w/ 12-20” Depth & 30” Spacing
BASKET OPTIONS:
- Dual 18" Basket Roller Assembly
- Dual Spike Roller Assembly w/ Scrapers
- FINAL ROLLER OPTIONS:
- Fixed Angle Iron Roller Assembly w/ Scrapers
- Cast 13-17" Ring Roller Assembly
OPTIONAL PLANTER:
- Small Seed Broadcast Air Planter System
