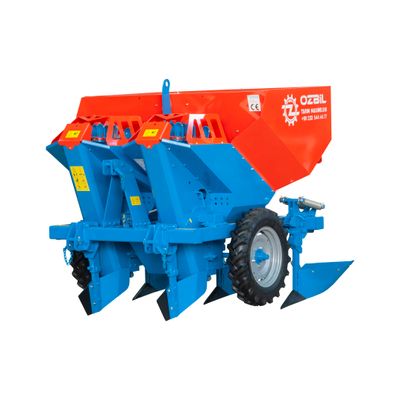

Ozbil - Model PD260 - PD262 - Two Rows Automatic Potato Planter Machine
The machine is connected to a tractor through a three – point hitch mechanism. Seeds prepared in advance for plantation are filled into the storage. The potato tubers inside the storage are automatically taken by conveyor chain with two rows of metal hollow pots on. The conveyor chain carries the seeds upper part. While carrying process, if the seeds are too much on the hollow pots, they are dropped back from the pots to the storage. The seeds on the pots are dropped to the beds opened by planter tine. When the model with seed dressing system is preferred, while the planting process, seed are dressed at the same time. Plantation is completed by covering the dropped seeds with the help of furrow closing moldboard tines.
Most popular related searches
potato planter machine
potato planter
planter machine
potato machine
automatic potato planter
potato
two row potato planter
planter
seed planting
seed storage
- LENGTH: 1970 mm
- WIDTH: 1875 mm
- HEIGHT: 1725 mm
- WEIGHT: 760 Kg
- CONNECTION TYPE: Three Point Hitch System (Category II)
- NUMBER OF WORKING ROWS: 2 Rows
- TRACTOR POWER: 65 - 80 HP
- POWERED BY: Own Wheel
- ROW DISTANCE: 700 - 750 mm
- SEED STORAGE CAPACITY: 750 kg. (Might Change According to Seed Dimensions)
- TUBER PLANTATION DISTANCE: 150 mm - 400 mm Stepless Gear Setting
- WORKING WIDTH: 1360 mm - 1500 mm Arasi Ayarli
- WORKING DEPTH: 150 mm - 250 mm
- SEED POT TYPE: Metal And Plastic Pot
- CAPACITY: 4,0 - 5,0 da/h
IDENTIFICATION
- PD260 Potato Planter Machines were designed for planting whole potato seeds in a swift and more professional manner for bigger sized fields.
- If the model with pesticide system is prefered, while the planting process, seeds are disinfected at the same time, automatically.
- 3 Different Pots Selection are supplied for the excellent planting.
- Plantation is performed automatically without any worker assistance.
- Plantation distance on rows can be adjusted by using the gears on the machine.
- The furrows created are at equal distances to each other.
- As the planting operation is easy and faster, it enables time-saving.
- Ploughshares made of a special heat-treated steel are resistant against wearing.
