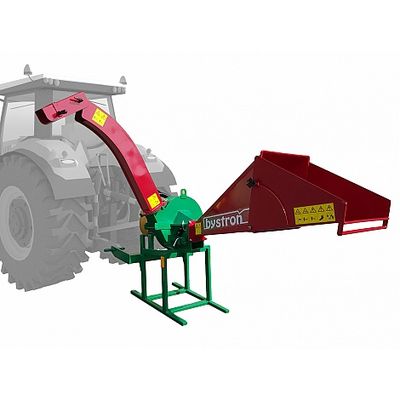

Bystron - Model Pirana - Wood Chipper Attachment for Tractors
The PIRANA wood chipper is engineered for efficient crushing of branches, wood, and wood waste. It employs a bi-directional self-feeding cutting screw, coupled with an automatic feeder, and operates entirely through mechanical means. Compatible with tractors generating 10 kW or more, the device attaches to the tractor’s three-point hitch as per the customer's specifications. The chipper accommodates a variety of materials, including leafy branches, needles, dry or wet wood, boards, and beams. During operation, branches are fed into the machine from behind the tractor, and the resulting wood chips are ejected through a chimney, either onto the ground or into a container. Designed for versatility, the chips produced are ideal for use in boilers or fireplaces and can also be utilized for soil amendment. The final chip is asymmetrical, lightweight, and resistant to mold, boasting a high calorific value. The accompanying accessories such as the double bagging chimney and bagging chimney enhance efficiency and usability.Machine equipment is designed for crushing branches, wood and wood waste, using two-way self-feeding cutting screw. The machine has automatic feeder and all functions are turned on mechanically. Required tractor power from 10 kW and more. The wood chipper takes branches with leaves, needles, branched, dry, wet, and takes also boards and beams.
Connection to the three-point hitch of the tractor according to customer's specifications. When crushing the branches are inserted from behind the tractor and chips are blown to the side. The chip is blown by the chimney to the ground or to the crate. Into the bag by chimney(accessory).
The final chip is suitable for heating in a boiler or fireplace, soil fixing and possibly for other purposes. The chip is asymmetrical and airy, so beautifully swells, does not mould and its calorific value is very high.
Length:2,52 m
Width:1,81 m
Height:1,86 m
Weight:240 kg
Cutting mechanism:two-way auger
Maximal crushed material diameter:max. 7 cm
Chip length (not adjustable):chip length 5-7 cm
Power:5 m3/hour
Wood chips output:Output blow
Tractor power from:10 kW
Cardan RPM:540 RMP
Hinge type:I a II - as specified by the customer
