CPM Europe BV products

Whatever your pelleting application, CPM has the knowledge and worldwide experience to guarantee that the die you purchase from us will provide excellent performance, high throughput and long life. CPM has the largest installed base of pelleting equipment worldwide. The CPM machine`s combination of ruggedness and energy efficiency is unbeatable.

Our steam chambers come in 55` or 65` diameter round expanding design. Heights of 10`, 15`, 20`, 25`, 30`, 35`, 40` and 5` extension available for the 55` diameter round model. (45`, and 50` available for the 65` diameter round model). Multi-level steaming ports. Smooth, obstruction-free interior. 1/8` stainless steel construction. Optional inlet hood available. Steam inlets that provide precise steam control. Simple steam housings that resist plugging. Sight glasses that allow observation of grain levels. Digital temperature probes and LED digital readout available. Completely plumbed, ready for customers` steam supply.

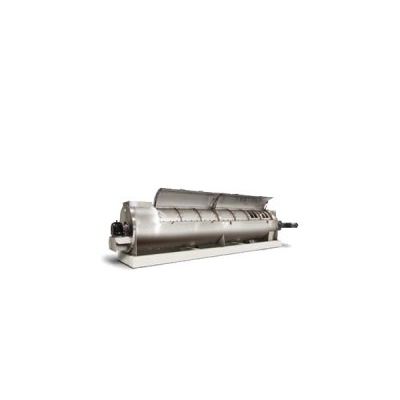

CPM conditioners provide the optimum preparation of raw materials prior to pelleting in the Feed, Oilseed, Biomass and other industries. The optimum conditioning of the prouct ensures you to get the highest performance out of a CPM pellet mill. The gain of good conditioning is a higher production throughput, better pellet durability and improved digestibility at reduced pellet mill power consumption. This makes it very worth while to study which CPM conditioner suits your production requirement best. All the CPM conditioners are made from stainless steel, have a very stable design and allow an easy installation on top of the pellet mill. A specially designed feeder screw feeds the conditioner with a controlled product quantity. A permanent magnet between the feeder screw and conditioner provides extra safety against tramp metal. The conditioner is equipped with a specially designed mixing shaft. The mixer barrel provides special inlet ports for steam, molasses and other type of liquid.

The European Union is driving new standards to ensure a high level of human health and consumer protection. The food safety policy is based on a comprehensive, integrated approach. This means that through out the food chain, from Farm to Table, across all food sectors, food safety must be on your mind.

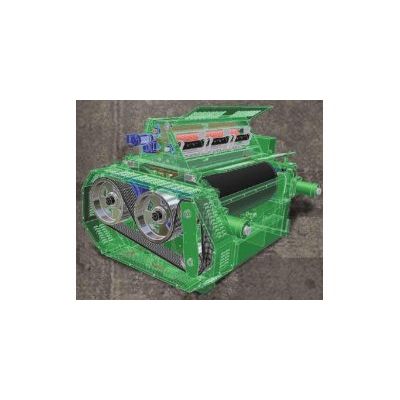

High-density base frame. HTD or V-belt main drive with separate heavy-duty motor base. Automatic hydraulic tensioning inter-roll drive with optional differential ratios. Spherical roller bearings in massive sliding block housing. Large diameter hydraulic cylinders that permit high flaking forces with low hydraulic forces. Accumulators that dampen high-frequency vibration. High-quality chill cast or ORT rolls with optional roll stops. Counter weight loaded scrapers. Optional overflow chutes that reduce roll end maintenance. Feeder gate for positive shutoff. Flow directors that direct product into roll nip. Roll feeder, pin feeder, and vibratory feeder available.

High-quality chill cast iron rolls. Double row shperical roller bearings mounted in square bearing blocks. Machined bearing slides. Hydraulic roll closure. Externally adjustable scrapers. Stainless steel feeder. Roll feeder, pin feeder and vibratory feeder available.

High-quality chill cast iron rolls. Double row spherical roller bearings mounted in pillow block housing. Machine screw jacks for roll closure. Internally adjustable scrapers. Stainless steel feeder.
