OLIS Ltd. products

Cup elevator НЗ is designed for grain and its processing products vertical transportation. It is used in milling and feed-milling plants, grain elevators, drying and purification towers, granulation lines and grain reception centers.

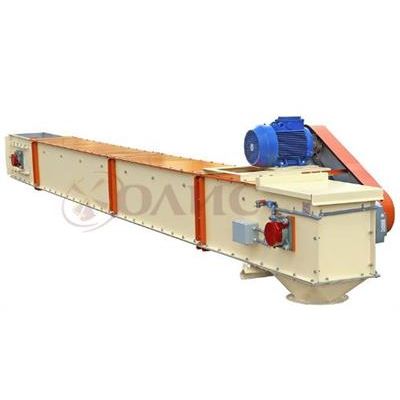

Scraping conveyor TCO is designed for the grain processing products transportation, animal feed and other bulk load. Scraping conveyor is used in elevators, grain reception centers, factories for cereals, animal feed, and oil extracting.

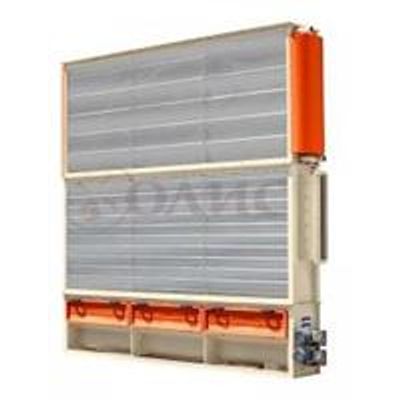

Source product passes successively through drying section, where contact with the pipes, hot steam. Then the grain goes to the cooling section, where it is cooled by blowing air and then displayed through a special graduation mechanism. Purpose and scope: Dryer is for drying grain cereals during hydrothermal treatment in the formulation of cereals.

Grain dryer consists of a base is a welded construction. Two pan set on top of the base and connected with him axles. On each tray installed: partition and box assembly. At the bottom of the installed base heating unit with fan. Dryer is equipped with a control board. The product is loaded into the box product. The fan, and then heating the section in turn before reaching the desired temperature of air blown by fans. The air temperature and drying time are set according to the listened-culture and its moisture content. The fan pushes the warm air in the trays. From there, through the holes in the perforated septum heated air passes through the product, carrying out its drying. To improve the drying box from the top is covered with a lid made of perforated galvanized sheet. After drying, the product is unloaded from the dryer. To facilitate the discharge has a boom-and-turn drier boxes on the axes.

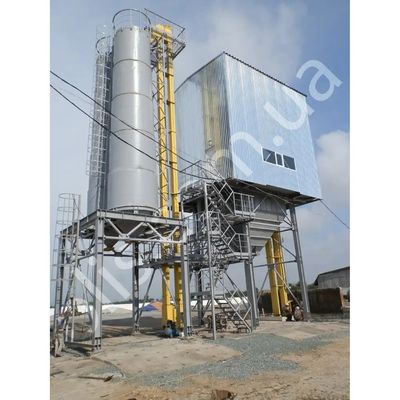

Compact grain cleaning complex ZAV NIVA is designed for preliminary and primary cleaning of grain, as well as for sorting and grading grain and seeds. Compact grain cleaning complex ZAV NIVA is designed for preliminary and primary cleaning of grain, as well as for sorting and grading grain and seeds. ZAV is an aggregate complex, which consists of: metal structures (bearing frame) with a ladder and a platform for equipment maintenance, feeding mechanism – grain elevators, grain cleaning separator LUCH ZSO, as well as a control panel with automation elements. Additionally, ZAV can be equipped with a receiving hopper and a bucket elevator for transporting cleaned grain.

“OLIS” Ltd offers grain cleaning aggregates ZAV-Niva-50B based on the grain separator LUCH ZSO-75 (ZAV complex of the type ZAV-40). ZAV-“Niva”-50B is used for post-harvest processing of wheat, rye, barley, buckwheat, oats, peas, corn, millet, soybeans, rapeseed and sunflower. Processing includes receiving and cleaning of grain, followed by shipment to vehicles.

“OLIS” Ltd offers grain cleaning aggregates ZAV-Niva-25 based on the grain separator LUCH ZSO-40 (ZAV complex of the type ZAV-20). ZAV-Niva-25 is used for post-harvest processing of wheat, rye, barley, buckwheat, oats, peas, corn, millet, soybeans, rapeseed and sunflower. Processing includes receiving and cleaning of grain, followed by shipment to vehicles.

De-awner MVO-1.5, manufactured by OLIS Ltd, is designed to remove awns of barley, oats. It is used in the preparatory departments of breweries and oat factories. The de-awner MVO-1.5 works as follows: the raw materials that have entered the operating chamber are intensively mixed by the operating bodies. As a result, intergranular friction and friction of the grain against the sieve shell occurs, as a result of which the awns are separated from the caryopsis. The awns removed in this way are sifted through the sieve shell, and the treated grain is discharged through the outlet. Additionally, it can be equipped with an aspiration channel to remove light impurities.

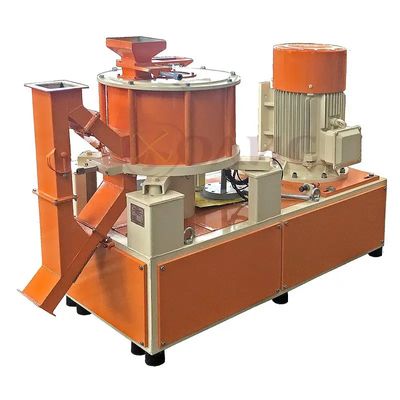

Abrasive dehuller KASKAD is designed for hulling and grinding grain of wheat, barley, peas, corn and millet. Grain hulling and grinding in the machine is carried out by abrasive discs with intensive removal of husks and flour from the working chamber into the aspiration system. The abrasive dehuller is completed with an aspiration column. To change productivity and degree of processing, tuning adjustments are provided. The machines can be additionally equipped with a feeder and operate in ASO of a groats mill.
