Precicam - Automatic Guiding System
From Crop Maintenance
PRECICAM is an independent guidance system in the form of an interface which is coupled between the tractor and ECONET. PRECICAM makes it possible to steer ECONET automatically in relation to the crop rows without any intervention when sowing. PRECICAM improves working comfort, provides hoeing accuracy of up to 3 cm on either side of the row and an operating speed of up to 15 km/h. The system is easy to couple and uncouple on the hoe, which makes it possible to couple different hoer configurations instantaneously if required.
-
Most popular related searches
Products Details
The Chassis
- 120 x 5 mm square tube frame, entirely mechanically welded to prevent play.
- - Arecore-treated travel shaft to facilitate sliding and limit wear.
- Double linkage, Category 2/3, with chassis frame overhang reduced
- by 38 cm making it possible to adapt the system to all types of hoe.
- - 3 m or 3.40 m width with swivelling coulters.
- Held by tyred wheels, 10-ply Ø 550 x 175, or swivelling coulters if there
- are significant slopes.

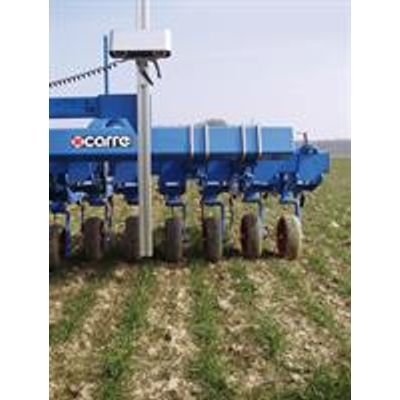

The camera
- The double optic camera makes it possible to monitor one or several crop rows, without having to make any preparation whatsoever when sowing.
- This system provides more accuracy than GPS for applications at low forward speed. Accuracy is in the order of 3 cm on each side of the row.
- Due to almost instantaneous responsiveness, the camera makes hoeing speeds of up to 15 km/h possible with a 20 cm offset on each side.
- Possible to mount the camera on the interface or as near as possible to the hoeing element to improve accuracy on slopes or tight bends.
- The camera makes it possible to work on the crop very early, as soon as the plant diameter is a minimum of 3 cm and the green colour is very apparent.
The sensors
- The mechanical sensors are used on crops with rigid stems.
- They take over from the camera when the crop is too developed to see the inter-rows.
- Two sensors come into contact with the plant stem and trigger the interface through the hydraulic system.
- It is possible to choose to mount the sensors on the guidance interface so that the system remains completely independent of the hoe, or in the case of a sloping tract of land they can be mounted on the ECONET as close as possible to the work of the tines to optimise accuracy.
Track monitor system
- An articulated shoe positioned under the PRECIAM follows the track previously created on the soil thanks to a concave disc installed on the drill
- A shoe made of a 40cm cylinder allows a perfect support in the bottom of the track and makes the guidance reliable
- A concave disc can be installed at the rear of the hoeing machine if several passes are needed
- A seat can be fitted on the hoeing machine in order to guide the PRECICAM manually with an electric control box
