Carre
Carre - Tines Combine
FromCarre

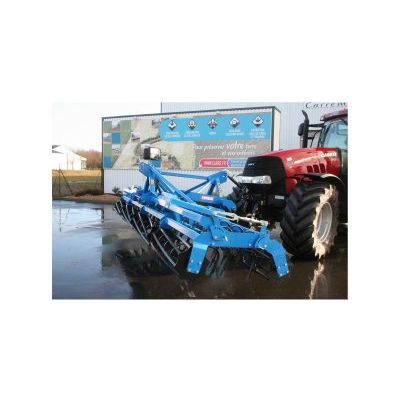

COMBINE is 3-point ride-on tools for seed bed preparation that can be combined with any type of mechanical or pneumatic seed drill. The number of passes is thus reduced. The great modularity of COMBINE enables it adapt to all types of soil and requirements. It is available in different versions: 3 to 6 m.
Most popular related searches
seed bed preparation
pneumatic seed drill
tine
tine holder
seed bed
sowing-in
seed bedding
seed drill
soil preparation
mechanical seed drill
- 3-point linkage with semi-automatic bar No.2, 4 supports
- Double beam frame in 80 x 8 square tube, entirely mechanically welded
- 3 tine-holder bars in steel, 50 x 15, centre distance 200 mm
- Signalling as an option
Safety:
- Hydraulic folding locked by a descent control valve in addition to the mechanical safety device for the extensions in the transport position
Durability:
- Entirely welded one-piece frame; no possibility of any play
- 3rd point anti-rotation pin Nos. 2 and 3 on steel plates 20 mm thick
Efficiency :
- Sowing in a single pass on ploughed land
- Even tine depth. Despite the differences in levels, the rollers always remain in contact with the ground
- Improved finish with the right choice of front and rear equipment
Comfort :
- Easy adjustment of the push bar working depth by screws
