Turbo Sprinkler
From Surface Irrigations

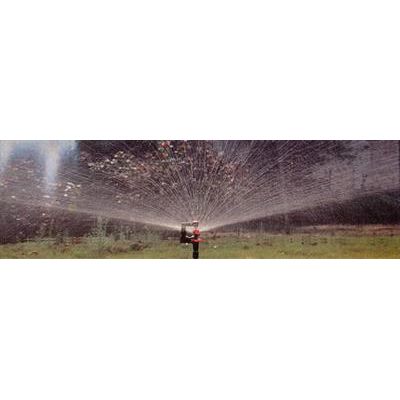

The Turbo Sprinkler spreads water by a rotating a mini turbo swivel that ejects a jet to cover a larger wetting diameter. It generates a circular uniform droplet distribution over a range of throw diameters from 5 to12 meters, thus nicely completes our line of low volume spreaders. The products are available in a variety of flow rates, from 25 L/hr (6.5 GPH) to 300 L/hr (75 GPH). The flow rate is based on selectable nozzles, according to a color code.
-
Most popular related searches
Product Details
Bridge Turbo Sprinkler - the ordinary fixed nozzle type.
A pivot Clean Valve Nozzle Turbo. It has a special feature to clean the nozzle when clogged by dirt particles. The dirt washes out by twisting the pivot valve, as illustrated in the product brochure.
The 'Double Bridge' Turbo Sprinkler: this model is made with a turbo swivel designed to achieve larger wetting diameters. In flow rates 200 L/hr to 300 L/hr it covers 11.5m to 12.4m respectively.
Installation of the three versions of our Turbo Sprinklers is possible in both the upright (UR) and upside-down (UD) options. The UD version comes with a special turbo swivel that ejects the jet in the proper elevated angle.
Curves of flow versus pressure and tables of wetting diameters are provided in the respective product brochures. A chart of Multi Product Flow Rate versus pressure is available, and a combined pdfdiagram of the wetting ranges of the Turbo Sprinklers and the Vibro Spreaders is provided as well.
