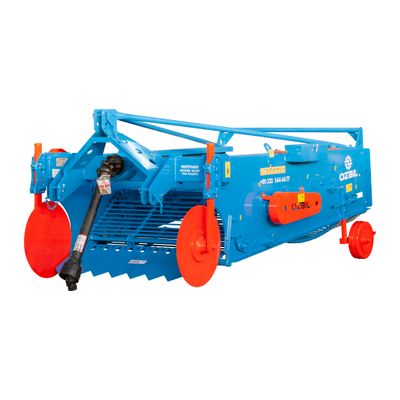

OzbilModel PHTP1400 - Two Rows Potato Harvester Machine

SHARE

The machine is connected to a tractor through a three-point hitch mechanism. The driveshaft is connected to the power take-off a tractor. Diving distance of the front cutter discs and depth of the carriage setting wheel are adjusted according to soil conditions. Planted furrows are cut by cutter discs and taken inside the machine by the receiving blade (shovel). Received soil is separated from the potatoes by making long pallet moving and jumping movements. Potatoes purged of soil are left on the soil surface behind the machine in a neat way.

Most popular related searches
  • PHTP1400 Potato Harvester was designed for sifting and surfacing ripe potatoes in planted furrows without damaging the potatoes in the way most suitable to soil conditions.
  • Suitable for Potatoes with a Row Planting Distance Between 70 - 75 cm.
  • It harvests two planted furrows simultaneously.
  • It can operate in all kinds of soil conditions (Dry, Wet, Heavy Soil).
  • It is more effective in heavy soil conditions (Wet-Muddy Soil).
  • Digger blade (shovel) is made of HARDOX500 quality  against wearing.
  • It is easy to use with a low rate of breakdown.
  • MODEL: PHTP1400
  • LENGTH: 3380 mm
  • WIDTH: 1850 mm
  • HEIGHT: 1300 mm
  • WEIGHT: 1050 Kg
  • CONNECTION TYPE: Three Point Hitch System (Category II)
  • NUMBER OF WORKING ROWS: 2 Rows
  • TRACTOR POWER: 70 - 80 HP
  • POWERED BY: Tractor Power Take-Off
  • TRACTOR PTO (POWER TAKE OFF) RPM: 540 d/d (Maxsimum)
  • SIFTING TYPE: Complete Sift Pallet (Steel Pallet)
  • QUALITY OF DIGGER BLADE: HARDOX 500 - Whole
  • ROW DISTANCE: 700 - 750 mm
  • WORKING WIDTH: 1360 mm
  • WORKING DEPTH: 250 mm
  • PALLET SIFTING AREA: 3,00 m²
  • CAPACITY: 3,5 da/h
