JAGODA JPS Agromachines

- Automatic Hydraulic Weeder

From

This hydraulic auto side weeder is designed for mechanical weed control in fruit & vegetable farms with crops growing in rows, at a spacing to allow the tractor to pass on a cultivated lane. This reduces the cost weed control, maintenance and facilitates keeping these crops. The automatic hydraulic hoe weeder machine is perfect for organic orchard and fruit farming, it can also be used to control weeds in berry bushes plantations. Can significantly reduce or even eliminate the use of herbicides in the fruit & vegetable plantations.

  • The automatic weeder machine is mounted on the front of the tractor and it is powered by the tractor’s hydraulics.
  • Hydraulically adjustable width for use in crops with different row widths. Depending on the plantation, weed size or soil hardness.

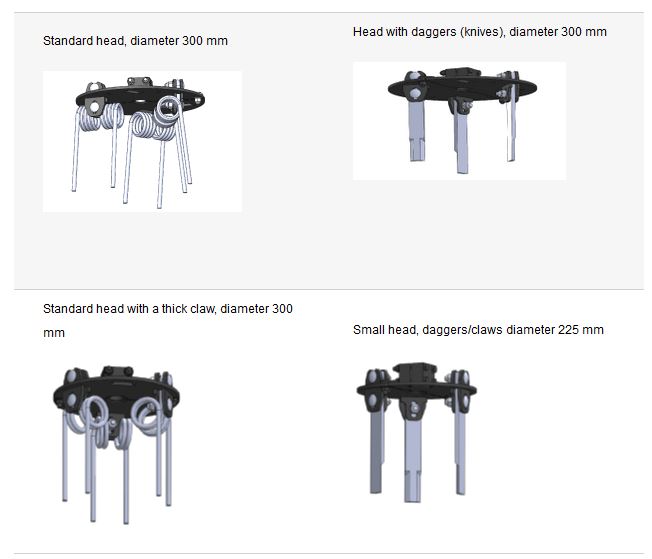

  • Several types of cutting heads can be used in the machine, the heads have three pairs of spring claw (or/and vertical knives) that destroy weeds.
  •  As a result, the working depth is set by changing the relative position of the head and the support plate, which copies the area.
  • The possibility of shifting the axle of the tractor to the right or to the left by approx 50 cm.
  • The device is equipped with a valve regulating the speed of the heads.
  • Automatic hydraulic weeder ZANA is the last version of the mechanical technology for hydraulic weeder in the market.
  • The rotating working heads make a swinging motion, weeding a 50 cm wide belt, and when they come across the trunk, it’s automatically retracting.

  • Length: 1 500 mm
  • Width : 2 200 mm
  • Height: 1 200/950 mm

  • Attaching method: three-point suspension system – front of the tractor
  • Drive: Tractor’s hydraulics   (working unit -hydraulic motors)
  • Oil demand: 40 lt/min
  • Diameter of the cutting head: 300 mm (200 mm)
  • Number of operators: Only the driver of the tractor
  • Working speed: Up 3 km/h
  • Driving speed: 20 km/h
  • Working width max: 3 500 mm
  • Working width min: 2 500 mm
  • Transport width: 2 200 mm
  • Length: 1 500 mm
  • Height: 1 200/950 mm
  • Weight: 350 kg
