Carbotech International products

Carbotech International is a known leader in the design, manufacture, and installation of lumber handling equipment for material in all sizes and quantities. Because transfers are essential to any processing plant, we offer a wide selection of custom designs to efficiently and economically handle timber, sawlogs, boards, or bundles using chains, rollers, or belts.

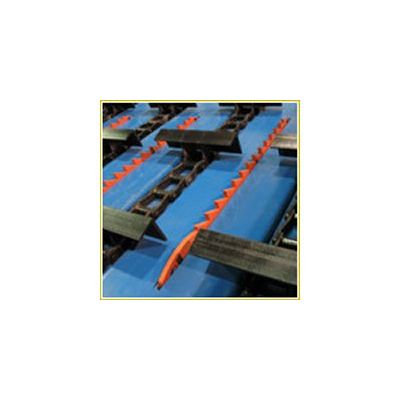

To maximize the productivity of your plant, it is essential that the efficiency of your lug loader be optimal: there is no point in speeding up your line if each lug is not filled. Carbotech International now offers you a lug loader with the features you have been looking for: performance, simplicity, reliability and solid. This patented lug loader – of the rotary type – uses pneumatic actuators to load, support and stop the boards. This advantageous feature over our competitors allows us to control independently each function and thus, adjust them accordingly for the board dimensions that you process. Even better, on a planer line, the system is programmed differently for each individual dimension: you can therefore easily obtain faster production speeds.

Carbotech International is known as the leader in the design, fabrication and installation of boards and logs handling equipments. According to diameter, lenght and piece count, Carbotech will evaluate your needs and will propose you the perfect unscrambler to satisfy your needs.

First, we developed a high speed multisaw trimmer that can handle your highest production rates. In standard configuration, saws are placed every foot with a 10 hp motor for every saw, two frame panels that serve as maintenance walkways, and saw modules that are quick and easy to maintain. Plus, in our design the chain circles back beneath the waste conveyor to ensure that rejects quickly fall onto the belt and, most importantly, do not become stuck between the chains. Available options include a fully pivoting frame for improved saw access or one or more adjustable saw modules to accommodate custom dimensions for certain markets. You may choose between saws that adjust manually or automatically.

We also offer two tandem saw trimmer models: a classic “Canadian” trimmer and an adjustable saw model. The first model requires two operators—one to cut the first end and another on the other side of the machine to cut the other end of the board after a series of chains and rollers push it through. This type of trimmer is still quite common in hardwood and other mills. The second type of trimmer is similar to the multisaw model but with only one fixed saw on the wood line side and one mobile saw on the opposite side. This configuration makes it possible to cut boards to the desired dimensions when space is limited.
