Depth Wheels (Opt): N. Forward Speed (KmH): 6 – 12. Hydraulic Services: 1. Power Requirement (Hp): 120-140. Road Lights: Y. Tines Qty/Spacing (mm) Alt 2: 3/500. Tines Qty/Spacing (mm) Std: 802. Transport Length (mm): 2473. Transport Width (mm): 2498. Weight (Kg) – Channel: Weight (Kg) – Channel. Weight (Kg) – Rubber: 1308. Weight (Kg) – TD600: 1300. Working Width (mm): 2438.

Working Width (mm): 2938. Transport Width (mm): 2998. Transport Length (mm): 2700. Weight (Kg) – Channel: 1440. Weight (Kg) – TD600: 1590. Weight (Kg) – Rubber: 1600. Tines Qty/Spacing (mm) Std: 3/890. Tines Qty/Spacing (mm) Alt 2: 5/534. Depth Wheels (Opt): N. Hydraulic Services: 1. Road Lights: Y. Forward Speed (KmH): 6 – 12. Power Requirement (Hp): 120-150.

Strato 350 Subsoiler Specification: Strato 350. Working Width (mm): 3438. Transport Width (mm): 3498. Transport Length (mm): 2873. Weight (Kg) – Channel: 1652. Weight (Kg) – TD600: 1818. Weight (Kg) – Rubber: 1830. Tines Qty/Spacing (mm) Std: 5/ 630. Tines Qty/Spacing (mm) Alt 2: -. Depth Wheels (Opt): OPT. Hydraulic Services: 1. Road Lights: Y. Forward Speed (KmH): 6 – 12. Power Requirement (Hp): 140-200.

Advantage Mounted Specifications: 300. Working Width (mm): 2908. Transport Width (mm): 2998. Transport Length (mm): 2450. Weight (Kg) – Channel: 1225. Weight (Kg) – TD600: 1370. Weight (Kg) – Rubber: 1365. Tines Qty/Spacing (mm): 7/450. Hydraulic Services: 1. Road Lights: Opt. Forward Speed (KmH): 6 – 12. Power Requirement (Hp): 120-160.

Advantage Trailed Specifications: 300. Forward Speed (KmH): 6 – 12. Hydraulic Services: 3. Power Requirement (Hp): 120-160. Road Lights: Std. Tines Qty/Spacing (mm): 7/450. Transport Length (mm): 5975. Transport Width (mm): 3000. Weight (Kg) – Channel: 2800. Weight (Kg) – Rubber: 2950. Weight (Kg) – TD600: 2950. Working Width (mm): 2908.

Tines Qty/Spacing (mm): 11/450. Power Requirement (Hp): 180-250. Hydraulic Services: 2. Weight (Kg) – Channel: 2605. Weight (Kg) – TD600: 2850. Weight (Kg) – Rubber: 2850. Transport Length (mm): 3035. Working Width (mm): 3908. Transport Width (mm): 3998. Forward Speed (KmH): 6 – 12. Road Lights: Std.

The consolidation roller on the Commander TR machine not only improves seed to soil contact for an excellent weed chit, but by carrying the weight of the machine it enables precise control of tine depth and a unique vertical tine action. The Tine height and angle are precisely and hydraulically controlled. Carrying the full weight of the machine on the roller means that the tines can work at a more vertical angle which leaves them free to vibrate and create fine surface tilth, rather than simiply providing a combing action.

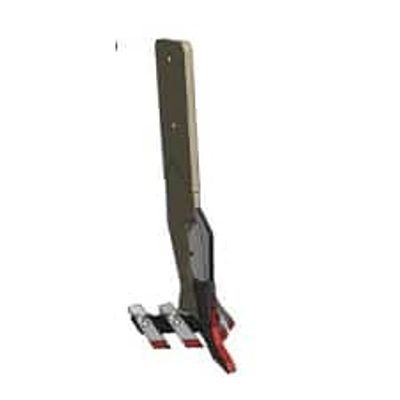

Sabre Max is a full depth sub-soiling tine. The wings are formed by replaceable slats which burst the soil at five points. The twisted slat profile point loads clod and reduces draft. Sabre Max is particularly effective for heavy clay soils. The double slat wing option prolongs wear life on stony soils. The wing assembly is interchangeable with Sabre Lite. Sabre Max is often fitted to both sub-soiler machines as well as disc/tine cultivators.

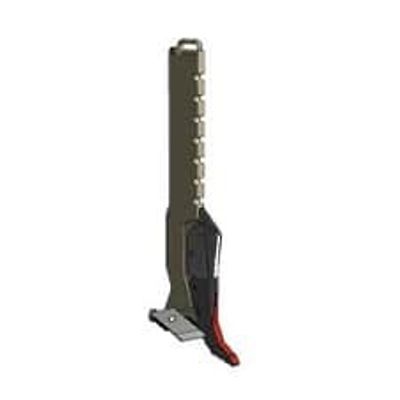

Sabre Lite brings Sabre technology to shallower working conditions with narrower spacing suitable for OSR establishment or disc/tine cultivators. The wing is interchangeable with the Sabre Max by changing the bolted frog/wing assembly.
